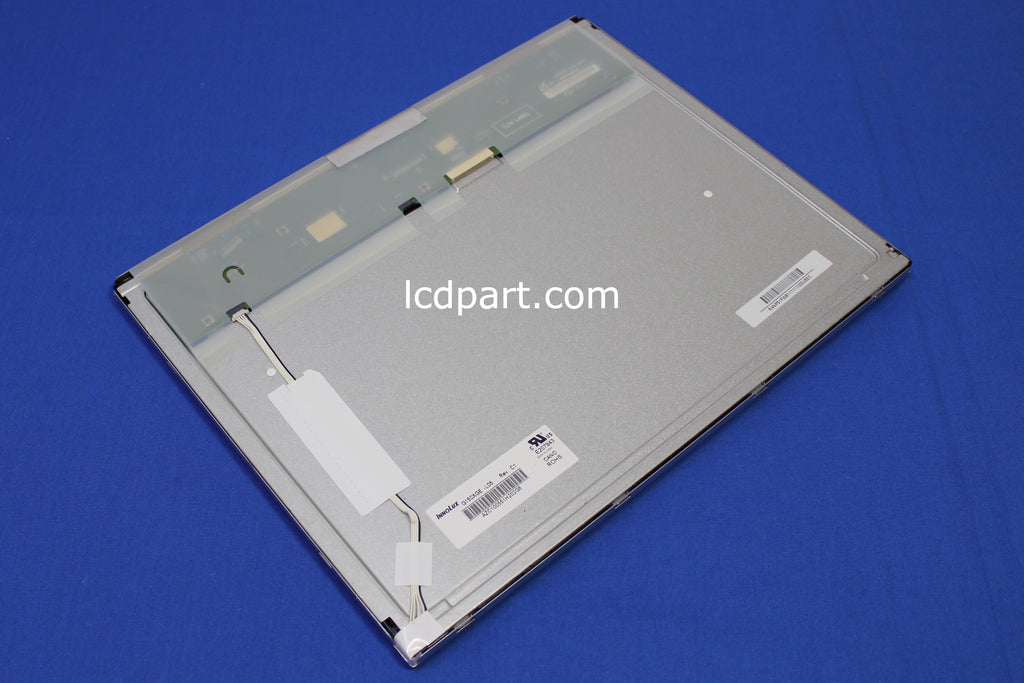

This refurbished INNOLUX G150XGE-L04 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
INNOLUX G150XGE-L04, one of the most popular LCD screens in control industrial and medical applications. This 15 inch INNOLUX G150XGE-L04 is originally equipped with its manufacturer's LED back light strip with built-in LED driver, which has typically 450 nits (based on its datasheet). By upgrading to our SB44318X11R5+MS640EXT LED kit, it can reach 1300 nits or higher.
MS640EXT wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 90 days warranty.
How to Connect
LED upgrade kit for INNOLUX G150XGE-L04, is Listed below
|Native Resolution||1024 X 768|
|Active Area||[mm]||304.128(H) X 228.096(V)|
|Outline dimension||[mm]||326.5(W) X 253.5(H) X 11.5(D)|
|Bolt Hole Dimension||[mm]||176 X 224|
|Input Voltage VDD||[Volt]||3.3V|
|Screen Wire Harness||DF14-20P-1LVDS|
|Electrical Interface||LVDS (8 bit) (P20, 8BO, 6BH)|
|BackLight Connector||H208K-P05N-02B, 1.25mm 5P(MS542EXT)|
|Backlight Inverter||P1=+12V, P2=GND, P3=ENA, P4=PWM, P5=N/C|
|Response time, Rising||msec||5|
|Response time, Falling||msec||11|
|Viewing Angle - Horizontal||degree||80|
|Viewing Angle - Vertical||degree||70|
|LCD controller kit||DF14-20P-1LVDS_1024X768-8Bit|
|LED Backlight kit||SB44318X11R5+MS640EXT|
|Direct Replacement LCD||MS150RSBDF1420D1|
