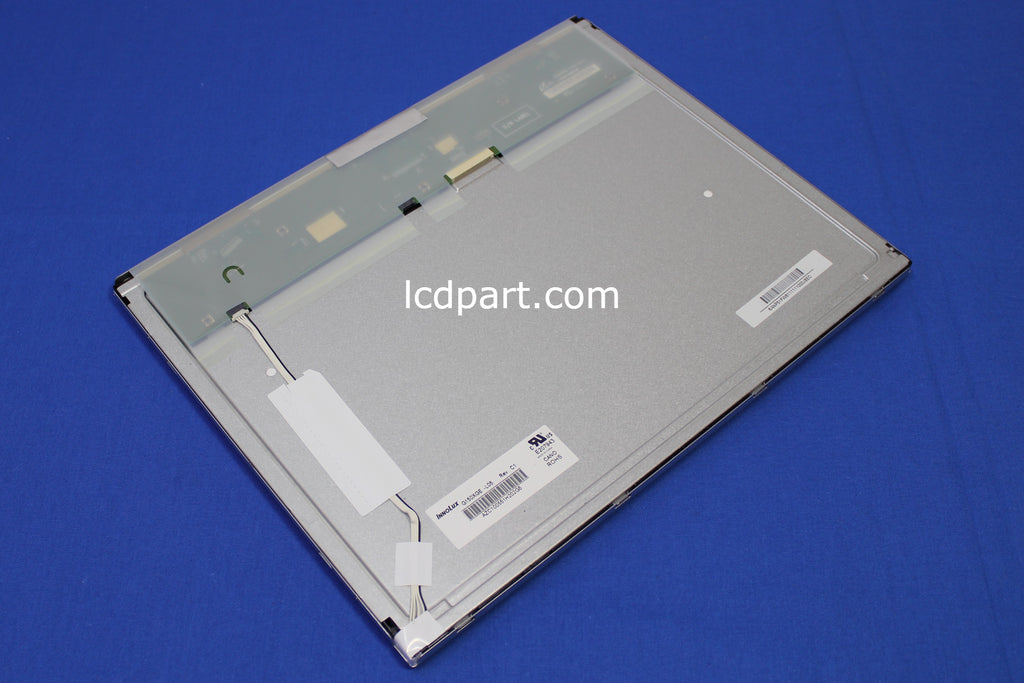

G150XGE-L05 INNOLUX 15 inch LCD screen


Price:
$219.99

Description

This refurbished INNOLUX G150XGE-L05 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
INNOLUX G150XGE-L05, one of the most popular LCD screens in control industrial and medical applications. This 15 inch INNOLUX G150XGE-L05 is originally equipped with its manufacturer's LED back light strip with built-in LED driver, which has typically 450 nits (based on its datasheet). By upgrading to our SB44318LED32651R5+MS640EXT LED kit, it can reach 1300 nits or higher.
MS640EXT wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 90 days warranty.
How to Connect
LED upgrade kit for INNOLUX G150XGE-L05, is Listed below
General Specifications:
Item Unit Specifications (BOX15)
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.128(H) X 228.096(V)
Outline dimension [mm] 326.5(W) X 253.5(H) X 11.5(D)
Bolt Hole Dimension [mm] 176 X 224
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (8 bit) (P20, 8BO, 6BH)
White Luminance [cd/m2] 250
Contrast Ratio 700:1
BackLight Connector H208K-P05N-02B, 1.25mm 5P(MS542EXT)
Backlight Inverter P1=+12V, P2=GND, P3=ENA, P4=PWM, P5=N/C
Response time, Rising msec 5
Response time, Falling msec 11
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 70
Compatible with MS150RMS542EXTDF1420D18B
LCD controller kit DF14-20P-1LVDS_1024X768-8Bit
LED Backlight kit SB44318LED32651R5+MS640EXT
Direct Replacement LCD MS150RSBDF1420D1
