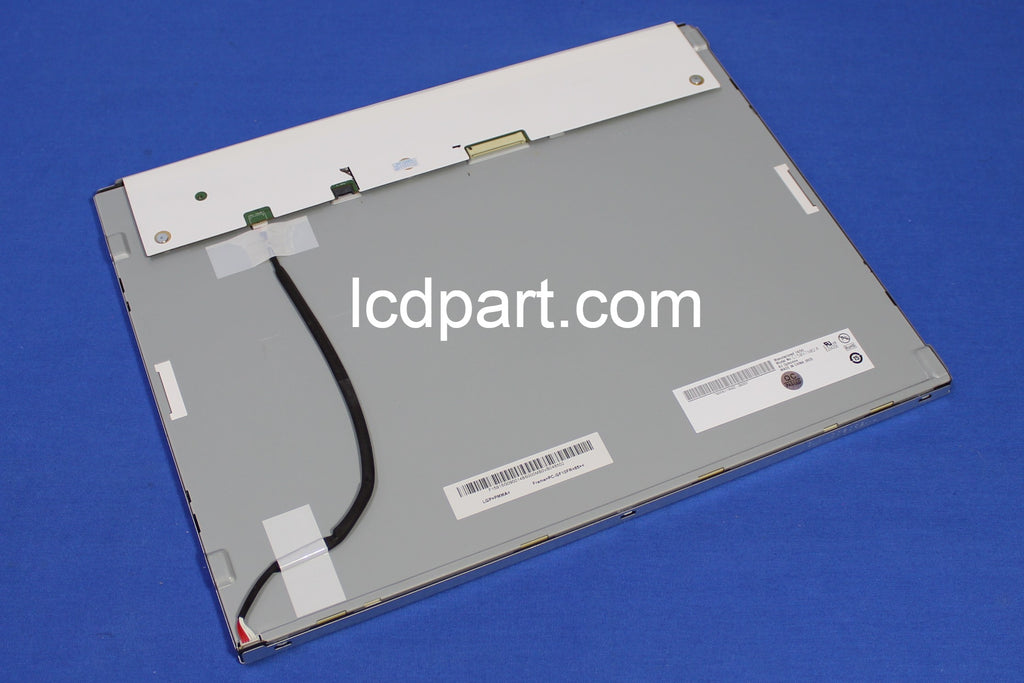

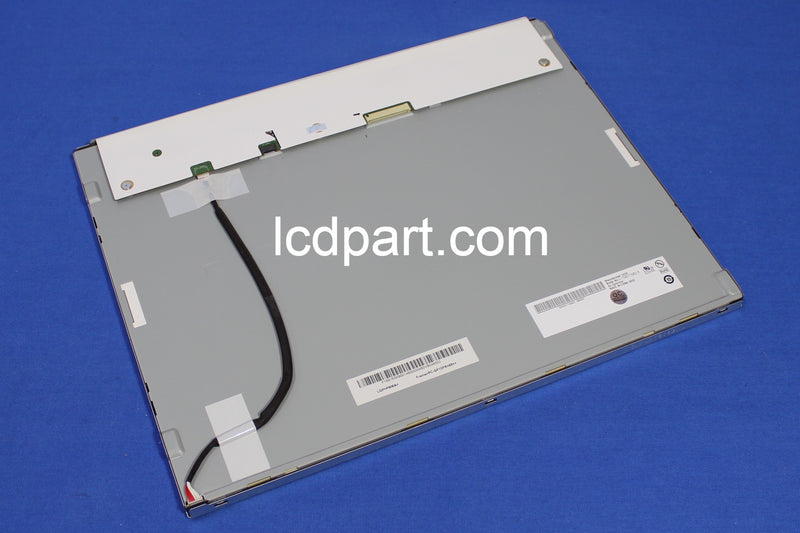

G150XTN02.0 15 inch AUO LCD Screen


Price:
$219.99

Description

AUO G150XTN03.0, one of the most popular LCD screen in an industrial control and medical applications. This 15 inch AUO G150XTN03.0 is originally equipped with AUO’s LED backlight which has typically 250 nits (based on G150XTN03.0’s datasheet). By upgrading to our LSR series LED kit, it could reach 1300 nits or higher (please watch youtube video demonstration). A wire adapter is included. It is easy to install, no technical skill require, anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.128(H) X 228.096(V)
Outline dimension [mm] 326.5(W) X 253.5(H) X 12(D)
Bolt Hole Dimension [mm] 176 X 224
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (6-bit/8-bit, P20)
White Luminance [cd/m2] 350
Contrast Ratio 700:1
BackLight Connector H208K-P05N-02B, 5 pin 1.25mm (MS542EXT)
Backlight Inverter P1=+12V, P2=GND, P3=ENA, P4=PWM, P5=N/C
Response time, Rising msec 5.7
Response time, Falling msec 2.3
Viewing Angle - Horizontal degree 85
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS_1024X768-8Bit
Direct Replacement LCD MS150RSBDF1420D1
