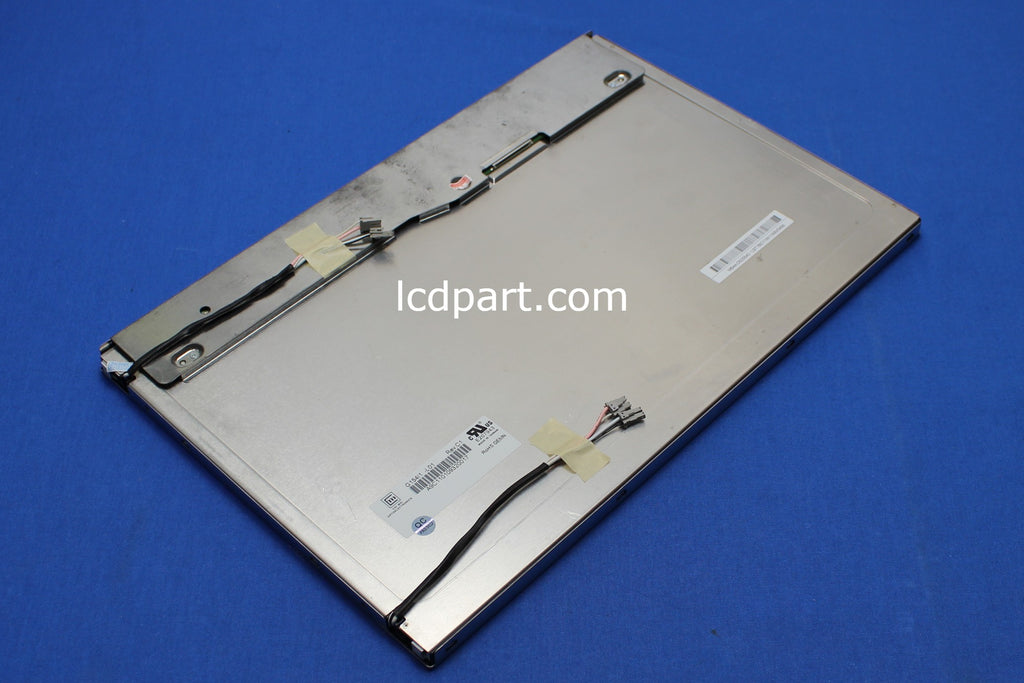

This refurbished CHI MEI G154I1-L01 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and tested. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions! 90 days warranty
CHI MEI G154I1-L01 , one of the most popular LCD panels in an industrial application. This 15.4 inch CHI MEI G154I1-L01 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our SB44340X2DIP24 LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
How to Connect
LED upgrade kit for CHI MEI G154I1-L01 is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 15.4
Native Resolution 1280 X 800
Active Area [mm] 331.2(H) X 207.0(V)
Outline dimension [mm] 352.0(W) X 230.0(H) X 15.8(D)
Bolt Hole Dimension [mm] 150 X 150
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS
White Luminance [cd/m2] 700
Contrast Ratio 700:1
BackLight Connector BHSR-02VS-1X4
Backlight Inverter Substitute MS30DI
Response time, Rising msec 5
Response time, Falling msec 11
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS_1280x800
LED Backlight kit SB44340X2DIP24
