Description
This refurbished HannStar HSD150SX84-B LCD screen has been tested and replaced with our new CCFL back light lamps, new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions! 90 days warranty

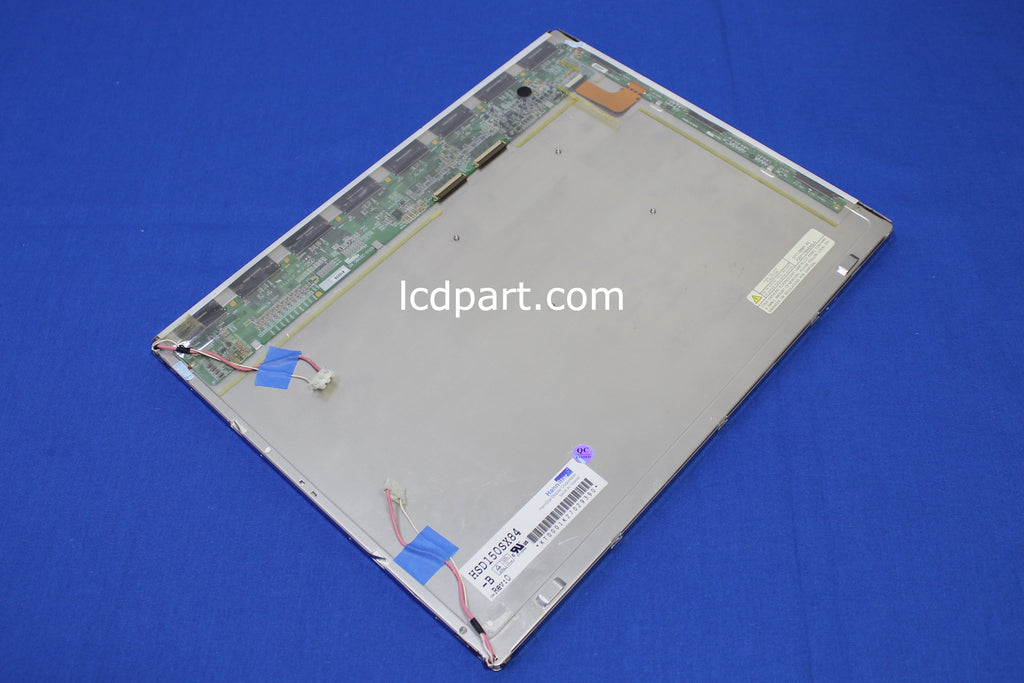

HannStar HSD150SX84-B, one of the most popular LCD panels in an industrial application. This 15 inch HannStar HSD150SX84-B is originally equipped with dual CCFL back light lamps. To extend its life and improve its performance, upgrading it to our UB36318LED6420X2 LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for HannStar HSD150SX84-B is Listed below
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 15 |
Native Resolution | 1024 X 768 | |
Active Area | [mm] | 304.1(H) X 228.1(V) |
Outline dimension | [mm] | 321.0(W) X 249.0(H) X 10.5(D) |
Bolt Hole Dimension | [mm] | 176 X 225 |
Input Voltage VDD | [Volt] | 3.3V |
Screen Wire Harness | FH12-40S-0.5SH, 40 Pin X2 | |
Electrical Interface | TTL(6-bit) | |
White Luminance | [cd/m2] | 250 |
Contrast Ratio | 400 | |
Backlight Connector | BHR-03VS-1X2 | |
Backlight Inverter | Substitute MS179DI | |
Response time, Rising | msec | tr+tf=35 |
Response time, Falling | msec | N/A |
Viewing Angle - Horizontal | degree | 60 |
Viewing Angle - Vertical | degree | 50 |
LED Backlight kit | UB36318LED6420X2 |
