Refurbished (like new condition) Kyocera KCG057QV1DB-G66. 90 days warranty.

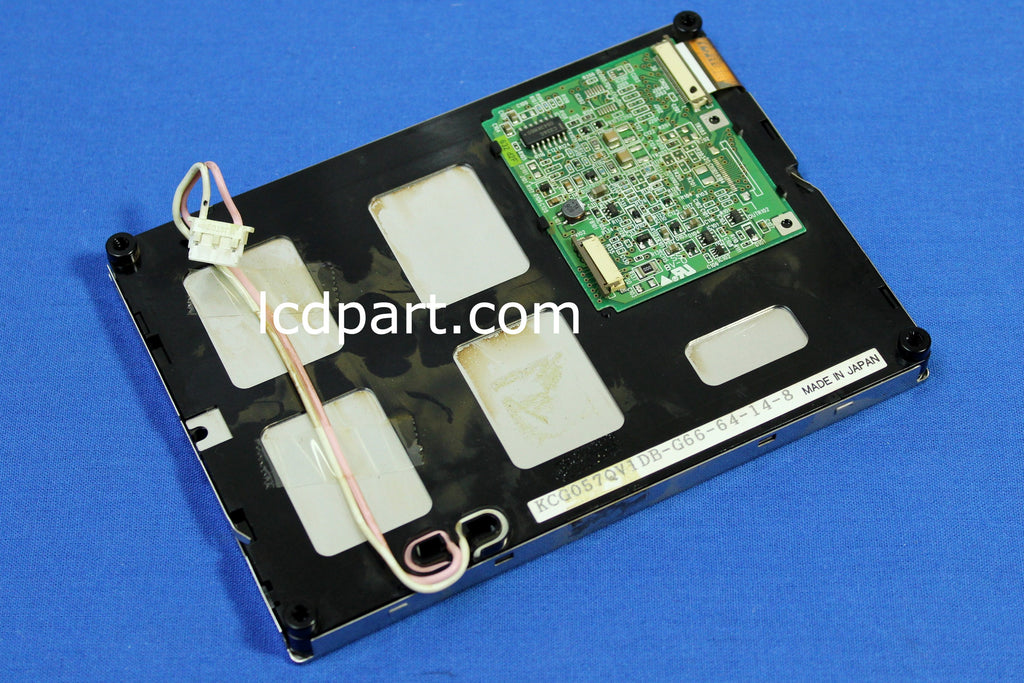

Kyocera KCG057QV1DB-G66, one of the most popular LCD panels in an industrial application. This 5.7 inch Kyocera KCG057QV1DB-G66 is originally equipped with one U shape CCFL backlight lamp. To extend its life and improve its performance, upgrading it to our UB35120X13R3D LED kit is the best option(LED Upgrade kit for KCG057QV1DB-G66 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 5.7
Native Resolution 320 X 240
Active Area [mm] 117.2(H) X 88.4(V)
Outline dimension [mm] 114.0(W) X 104.8(H) x 12.7(D)
Bolt Hole Dimension [mm] 96.4 X 96.4
Input Voltage VDD [Volt] 3.3/5V
Screen Wire Harness 20 pin flat ribbon cable, 0.5mm
Electrical Interface Dot Matrix
White Luminance [cd/m2] 400
Contrast Ratio 55
BackLight Connector BHR-03VS-1X1
Backlight Inverter Substitute MS397DI
Response time, Rising msec 180
Response time, Falling msec 170
Viewing Angle - Horizontal degree 50
Viewing Angle - Vertical degree 55
LED Backlight kit UB35120X13R3D
