Description

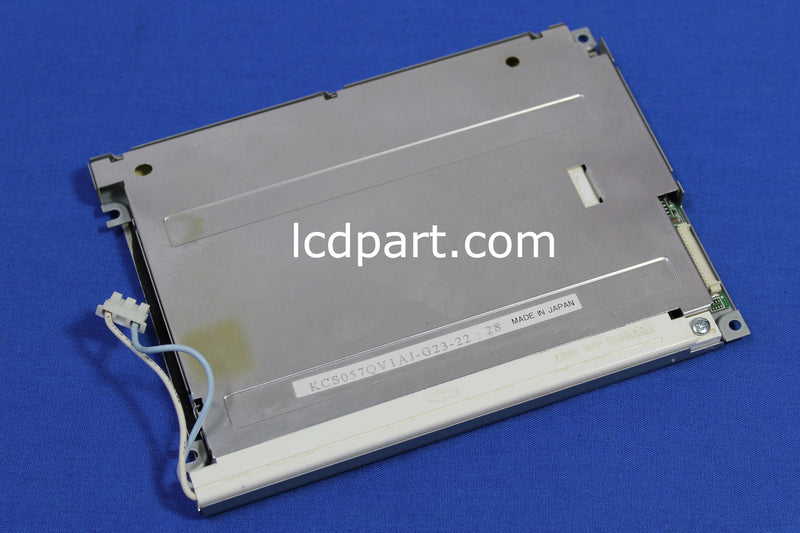

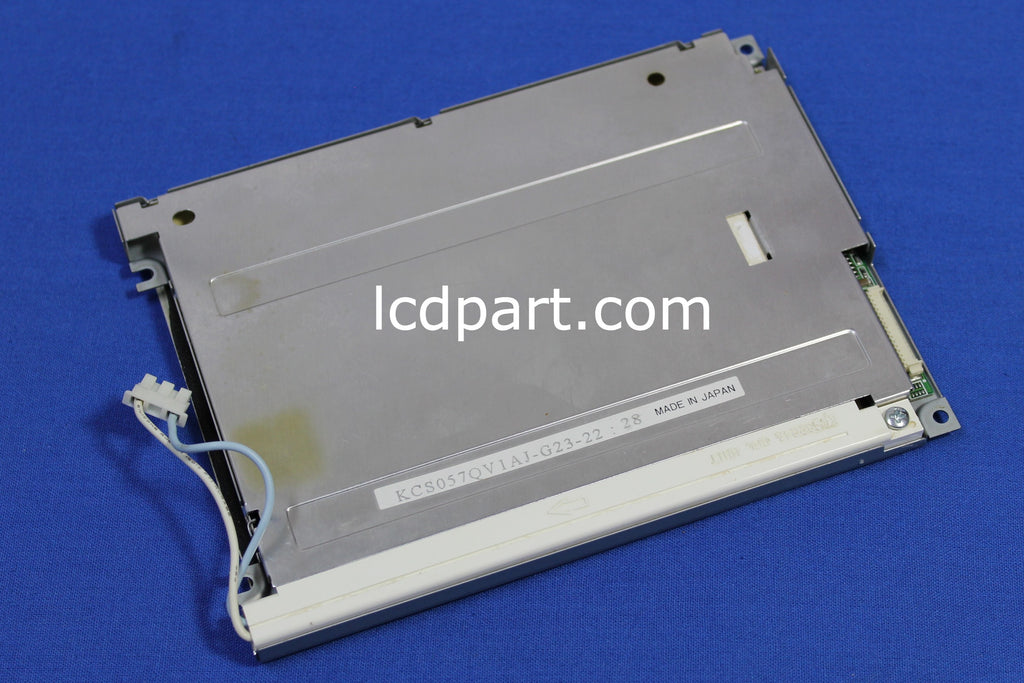

This refurbished Kyocera KCS057QV1AJ-G23 LCD screen has been replaced with our new CCFL back light lamp, new polarize film and there are no scratches and no pressure marks on the screens. Guaranteed! Like new conditions! 90 days warranty.

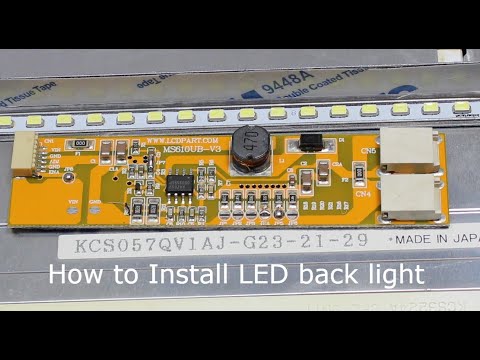

Kyocera KCS057QV1AJ-G23, one of the most popular LCD panels in an industrial application. This 5.7 inch Kyocera KCS057QV1AJ-G23 is originally equipped with one KCS32224A-CFL (1 CCFL assembly). To extend its life and improve its performance, upgrading it to our KCS057QV1AJ-G23-LEDKIT is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 5.7 |
Native Resolution | 320 X 240 | |
Active Area | [mm] | 118.18(H) X 89.38(V) |
Outline dimension | [mm] | 154.6(W) X 114.8(H) X 8.5(D) |
Bolt Hole Dimension | [mm] | 106.8 X 81 |
Input Voltage VDD | [Volt] | 5V |
Screen Wire Harness | TTL-53261-1510-15P | |
Electrical Interface | STN Transmissive Color Dot Matrix | |
White Luminance | [cd/m2] | 200 |
Contrast Ratio | 40 | |
Backlight Connector | BHR-03VS-1X1 | |
Backlight Inverter | Substitute MS397DI | |
Response time, Rising | msec | 220 |
Response time, Falling | msec | 110 |
Viewing Angle - Horizontal | degree | N/A |
Viewing Angle - Vertical | degree | N/A |
LED Backlight kit | KCS057QV1AJ-G23-LEDKIT |
