Description
This refurbished LG PHILIPS LB104V03-A1 LCD screen has been replaced with our new CCFL back light lamps, new polarize film and tested. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions! 90 days warranty

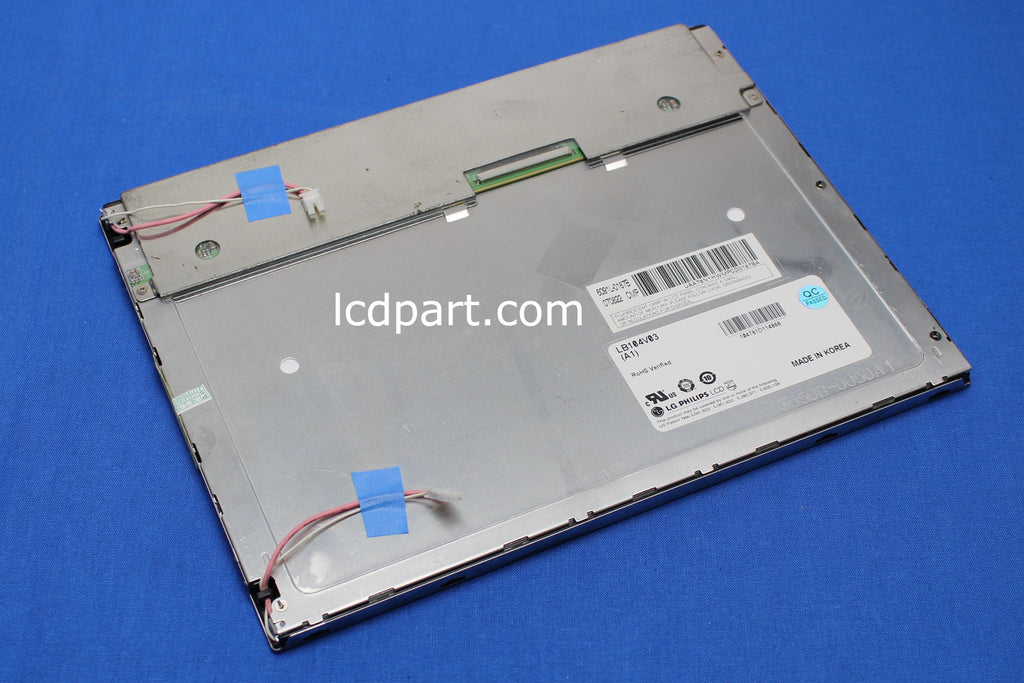

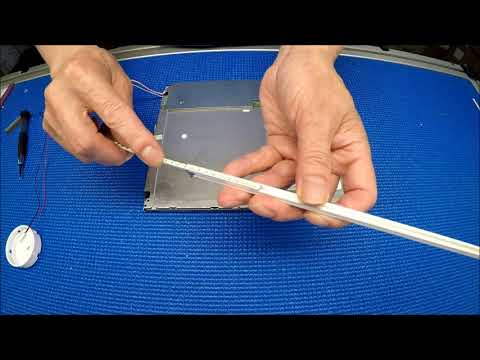

LG PHILIPS LB104V03-A1, one of the most popular LCD panels in an industrial application. This 10.4 inch LG PHILIPS LB104V03-A1 is originally equipped with dual CCFL back light lamps. To extend its life and improve its performance, upgrading it to our LB104V03-A1-LEDKIT is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for LG PHILIPS LB104V03-A1 is Listed below
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 10.4 |
Native Resolution | 640 X 480 | |
Active Area | [mm] | 211.2(H) X 158.4(V) |
Outline dimension | [mm] | 236.0(W) X 180.0(H) X 10.5(D) |
Bolt Hole Dimension | [mm] | 120 X 130 |
Input Voltage VDD | [Volt] | 3.3V |
Screen Wire Harness | TTL-FIX-30S | |
Electrical Interface | TTL(6-bit) | |
White Luminance | [cd/m2] | 400 |
Contrast Ratio | 300:1 | |
Backlight Connector | BHSR-02VS-1X2 | |
Backlight Inverter | Substitute MS178DI | |
Response time, Rising | msec | 5 |
Response time, Falling | msec | 20 |
Viewing Angle - Horizontal | degree | 60 |
Viewing Angle - Vertical | degree | 50 |
LED Backlight kit | LB104V03-A1-LEDKIT |
