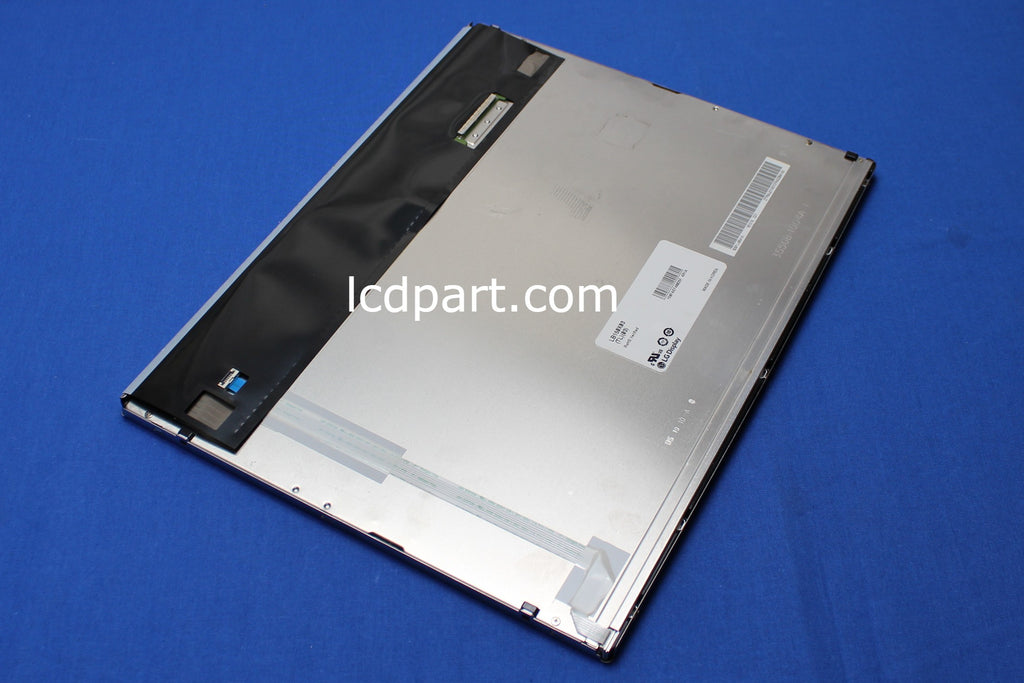

LB150X03-TL03 15 inch LG LCD screen



This refurbished LG LB150X03-TL03 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
LG LB150X03-TL03, one of the most popular LCD screens in control industrial and medical applications. This 15 inch LG LB150X03-TL03 is originally equipped with its manufacturer's LED backlight strip, which has typically 400 nits (based on its datasheet). By upgrading to our SB44318X11R5 LED kit, it can reach 1300 nits or higher.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for LG LB150X03-TL03 is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.1(H) X 228.0(V)
Outline dimension [mm] 326.5(W) X 253.5(H) X 12.0(D)
Bolt Hole Dimension [mm] 176 X 224
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness FIX-30S-CUSTOM, P28~P30=+12V
Electrical Interface LVDS (8-bit), P4: 8 Bit=O/NC, 6 Bit=H(3.3V)
White Luminance [cd/m2] 400
Contrast Ratio 700:1
BackLight Connector Part of FIX-30S-CUSTOM
LED Backlight Build-In
LED Strip Dimension N/A
Response time, Rising msec 2
Response time, Falling msec 6
Viewing Angle - Horizontal degree 70
Viewing Angle - Vertical degree 65
LCD controller kit Not Available
LED Backlight kit SB44318X11R5
