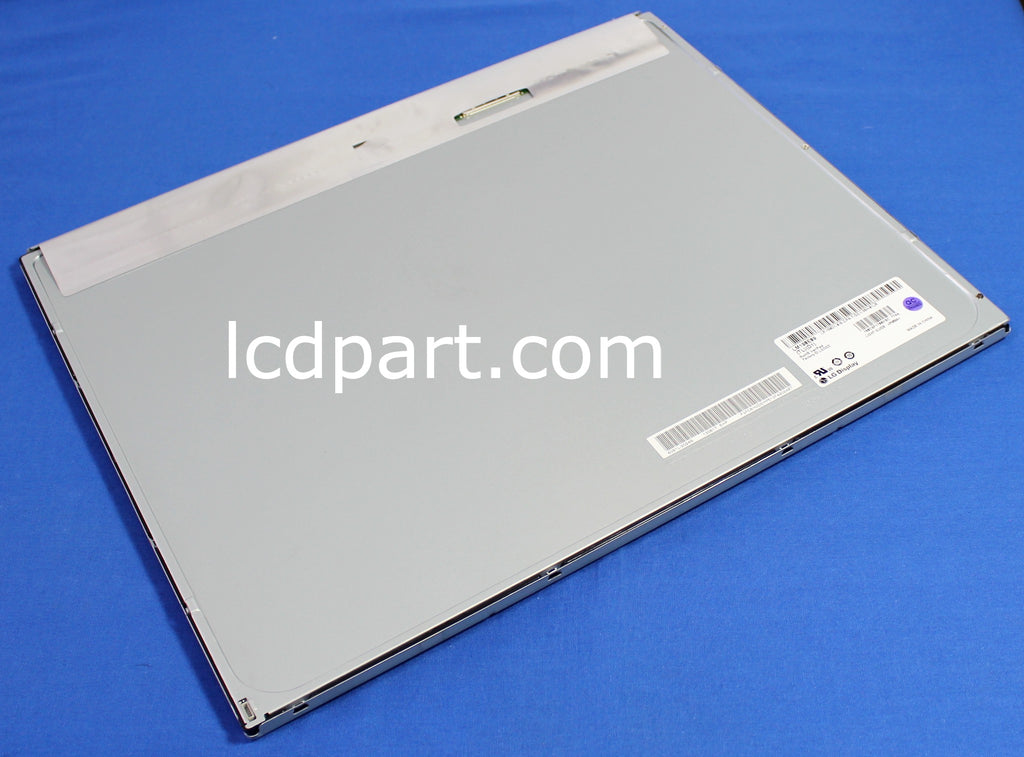

LM190E09-TLD1, 19 inch LG Philips LCD screen



Refurbished (like new condition) LG Philips LM190E09-TLD1. 90 days warranty.
LG Philips LM190E09-TLD1 is one of the most popular LCD screen in an industrial control application. This 19 inch LG Philips LM190E09-TLD1 is originally equipped with LED backlight.
General Specifications:
Item Unit Specifications
Screen Size [inch] 19
Native Resolution 1280 X 1024
Active Area [mm] 376.320(H) X 301.056(V)
Outline dimension [mm] 396.0(W) X 324.0(H) X 9.9(D)
Bolt Hole Dimension [mm] 174 X 192
Input Voltage VDD [Volt] 5V
Screen Wire Harness FIX-30S-2LVDS
Electrical Interface LVDS (8-bit)
White Luminance [cd/m2] 300
Contrast Ratio 1000:1
BackLight Connector SHJP-06V-S, 6 pin 1.0mm. MS570EXT
Backlight Inverter 44.3V/60MA/2 strings, P1/P6=FB, P3/P4=VLED, P2/P5=NC
Response time, Rising msec 1.3
Response time, Falling msec 3.7
Viewing Angle - Horizontal degree 88
Viewing Angle - Vertical degree 85
LCD controller kit FIX-30S-2LVDS_1280X1024
