Description
This refurbished LG Philips LM190WX2-TLB1 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions! 90 days warranty

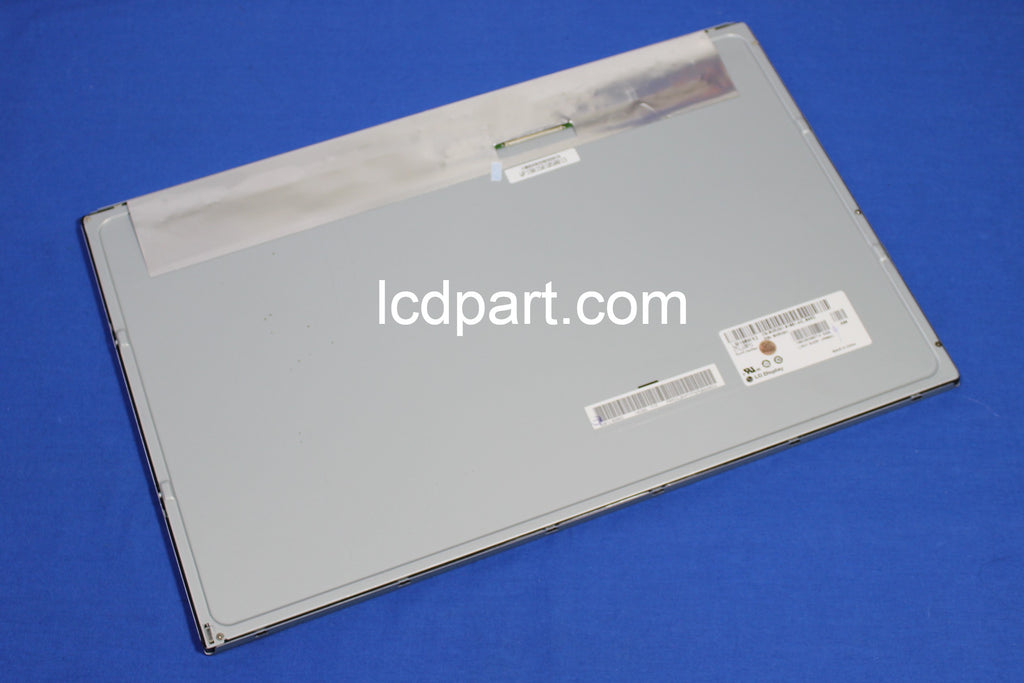

LG Philips LM190WX2-TLB1 , one of the most popular LCD screen in an industrial control application. This 19 inch LG Philips LM190WX2-TLB1 is originally equipped with LED back light.
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 19 |
Native Resolution | 1440 X 900 | |
Active Area | [mm] | 408.24(H) X 255.15(V) |
Outline dimension | [mm] | 428.0(W) X 278.0(H) X 10.2(D) |
Bolt Hole Dimension | [mm] | 98 X 98 |
Input Voltage VDD | [Volt] | 5V |
Screen Wire Harness | FIX-30S-2LVDS | |
Electrical Interface | Dual channel LVDS | |
White Luminance | [cd/m2] | 250 |
Contrast Ratio | 1000:1 | |
Backlight Connector | SHJP-06V-S 1.0MM, 6 PIN(MS570EXT) | |
Backlight Inverter | 39.0V/75ma/4 strings, P1/P2/P5/P6=LED-, P3/P4=LED+ | |
Response time, Rising | msec | 1.3 |
Response time, Falling | msec | 3.7 |
Viewing Angle - Horizontal | degree | 88 |
Viewing Angle - Vertical | degree | 85 |
LCD controller kit | FIX-30S-2LVDS_1440X900 |
