Description
This refurbished LG Philips LM201W01-SLC1 LCD screen has been replaced with our new CCFL back light lamps, new polarize film and tested. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions! 90 days warranty

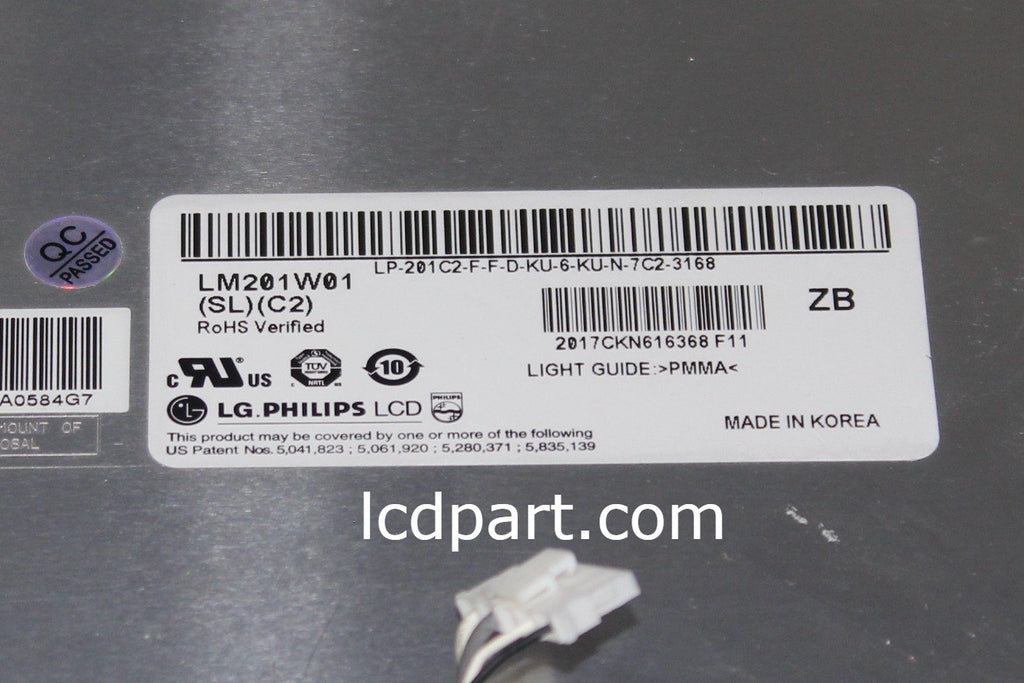

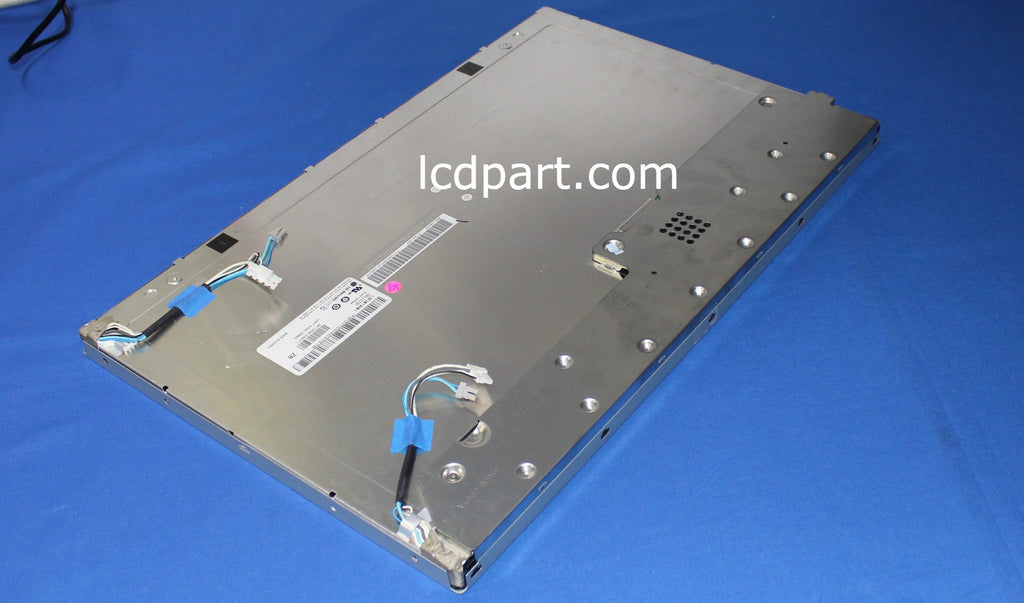

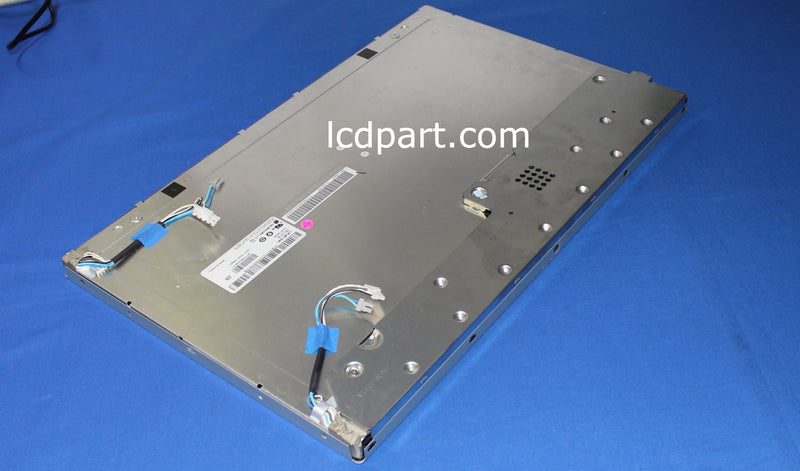

LG Philips LM201W01-SLC1, one of the most popular LCD panels in an industrial application. This 20.1 inch Sharp LG Philips LM201W01-SLC1 is originally equipped with 6 CCFL back light lamps. To extend its life and improve its performance, upgrading it to our UB60420LED5020X2 LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for UB60420LED5020X2 is Listed below
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 20.1 |
Native Resolution | 1680 X 1050 | |
Active Area | [mm] | 433.44(H) X 270.90(V) |
Outline dimension | [mm] | 459.4(W) X 296.4(H) X 22.8(D) |
Bolt Hole Dimension | [mm] | 240 X 240 |
Input Voltage VDD | [Volt] | 12V |
Screen Wire Harness | FIX-30S-2LVDS | |
Electrical Interface | Dual channel LVDS | |
White Luminance | [cd/m2] | 300 |
Contrast Ratio | 800 | |
BackLight Connector | BHRS-02VS-1X2, BHR-05VS-1X2 | |
Backlight Inverter | Substitute MS175DI | |
Response time, Rising | msec | 7 |
Response time, Falling | msec | 9 |
Viewing Angle - Horizontal | degree | 178 |
Viewing Angle - Vertical | degree | 176 |
LCD controller kit | FIX-30S-2LVDS_1680X1050 | |
LED Backlight kit | UB60420LED5020X2 |
