LQ038Q5DR01


Price:
$199.99

Description

New Sharp LQ038Q5DR01. 90 days warranty.

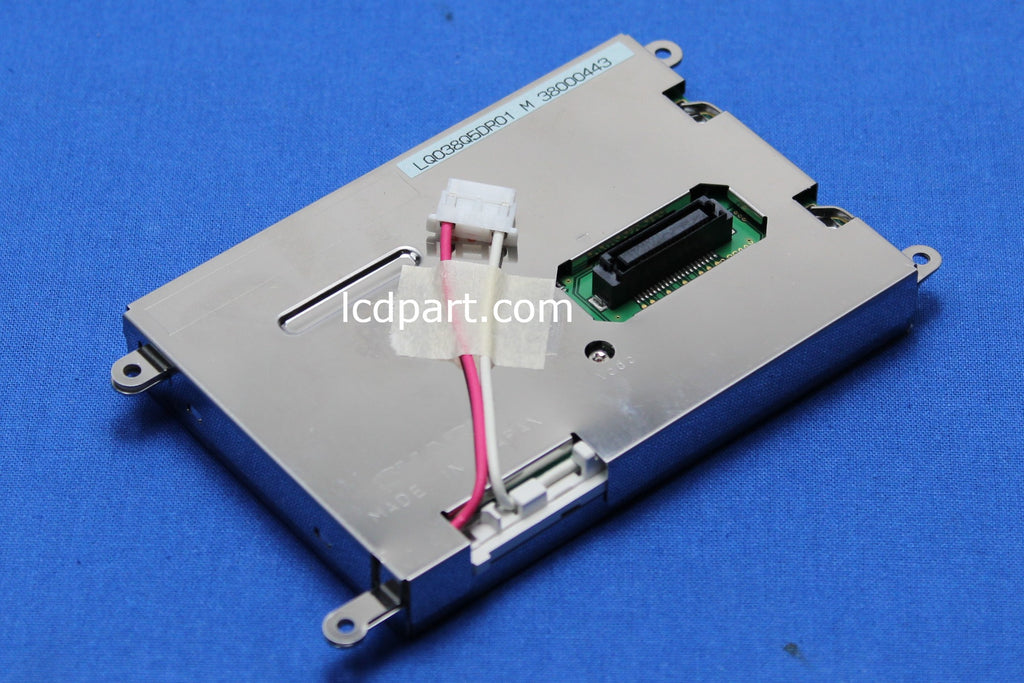

Sharp LQ038Q5DR01, one of the most popular LCD panels in an industrial application. This 8.4 inch Sharp LQ038Q5DR01 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our SB44080X14R7D LED kit is the best option (LED Upgrade kit for sharp LQ038Q5DR01 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 3.8
Native Resolution 320 X 240
Active Area [mm] 78.72(H) X 53.64(V)
Outline dimension [mm] 117.6(W) X 69.45(H) x 13.45(D)
Bolt Hole Dimension [mm] 57 X 60
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness KX15-40K*D1
Electrical Interface TTL
White Luminance [cd/m2] 450
Contrast Ratio N/A
Backlight Connector BHR-03VS-1X1,
Backlight Inverter Substitute MS397DI
Response time, Rising msec 30
Response time, Falling msec 50
Viewing Angle - Horizontal degree 65
Viewing Angle - Vertical degree 65
LED Backlight kit SB44080X14R7D
