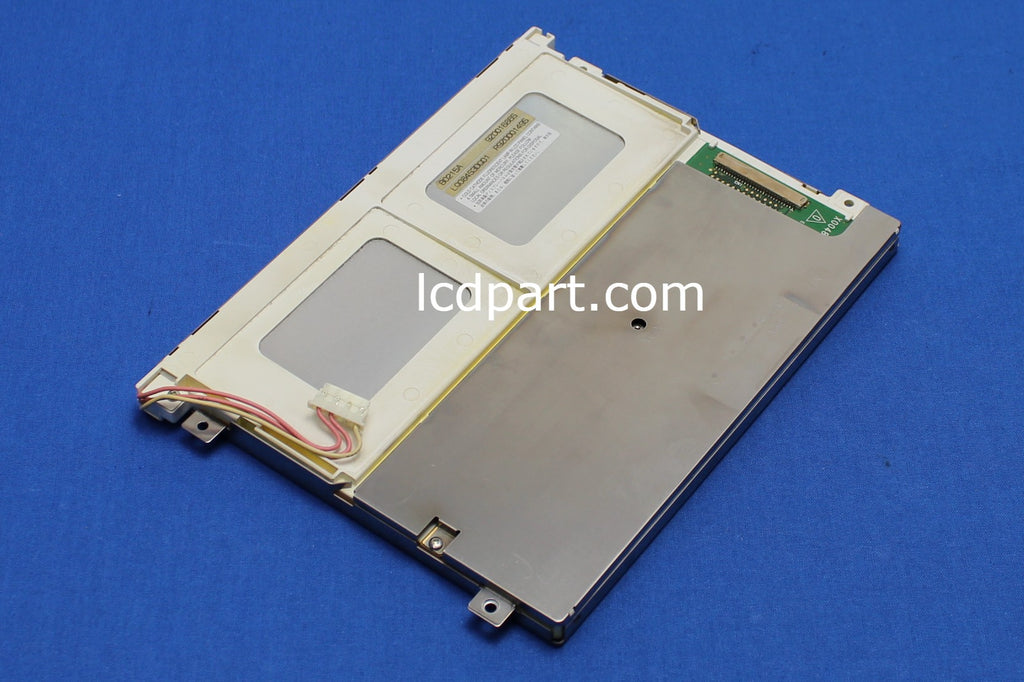

This refurbished Sharp LQ084S3DG01 LCD screen has been tested and replaced with our new CCFL backlight lamps, new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty

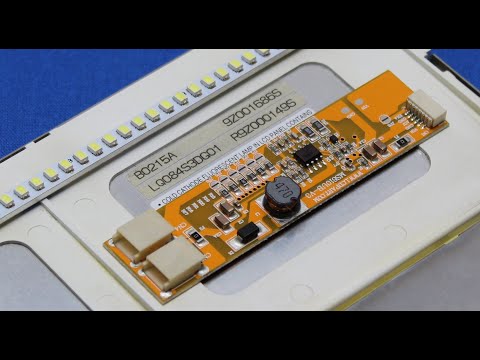

Sharp LQ084S3DG01, one of the most popular LCD panels in an industrial application. This 12.1 inch Sharp LQ084S3DG01 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB54192LED4820X1+MS610UB LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for Sharp LQ084S3DG01 is Listed below
|Native Resolution||800 X 600|
|Active Area||[mm]||170.4(H) X 127.8(V)|
|Outline dimension||[mm]||199.5(W) X 149.5(H) X 11.6(D)|
|Bolt Hole Dimension||[mm]||104.9 X 104.9|
|Input Voltage VDD||[Volt]||3.3V|
|Screen Wire Harness||TTL-DF19-30P|
|Backlight Inverter||Substitute MS495DI|
|Response time, Rising||msec||7|
|Response time, Falling||msec||23|
|Viewing Angle - Horizontal||degree||80|
|Viewing Angle - Vertical||degree||80|
|LCD controller kit||TTL-DF19-30P|
|LED Backlight kit||UB54192LED4820X1+MS610UB|
