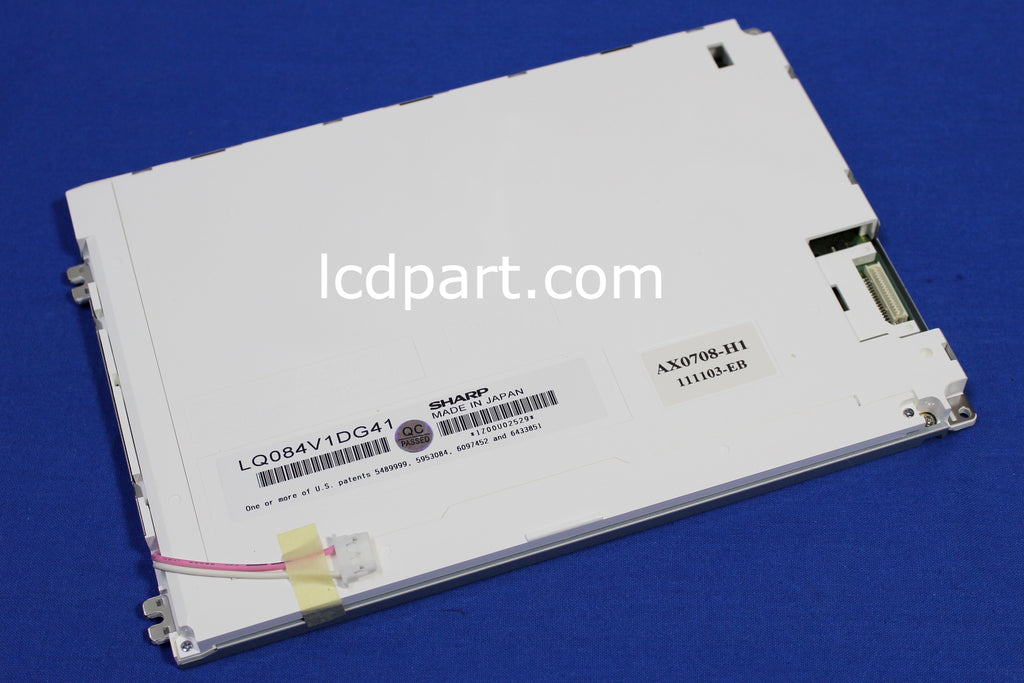

This refurbished Sharp LQ084V1DG42 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and tested. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions! 90 days warranty

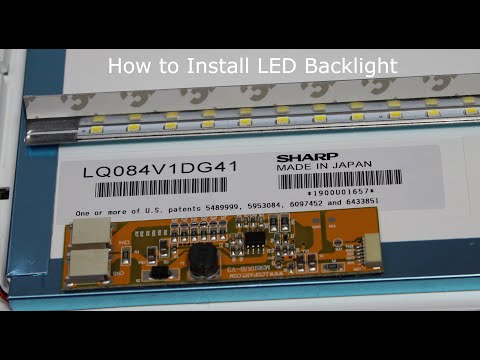

Sharp LQ084V1DG42, one of the most popular LCD panels in an industrial application. This 8.4 inch Sharp LQ084V1DG42 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our LSRSB44185X12R7D LED kit is the best option (LED Upgrade kit for sharp LQ084V1DG42 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
|Native Resolution||640 X 480|
|Active Area||[mm]||170.9(H) X 128.2(V)|
|Outline dimension||[mm]||221.0(W) X 152.4(H) x 12.0(D)|
|Bolt Hole Dimension||[mm]||109.3 X 146.4|
|Input Voltage VDD||[Volt]||3.3/5.0 V|
|Screen Wire Harness||TTL-DF9-31-2829|
|Electrical Interface||TTL (6-bit)|
|Backlight Inverter||Substitute MS397DI|
|Response time, Rising||msec||10|
|Response time, Falling||msec||25|
|Viewing Angle - Horizontal||degree||70|
|Viewing Angle - Vertical||degree||60|
|LCD Controller kit||TTL-DF9-31_640X480|
|LED Backlight kit||LSRSB44185X12R7D|
