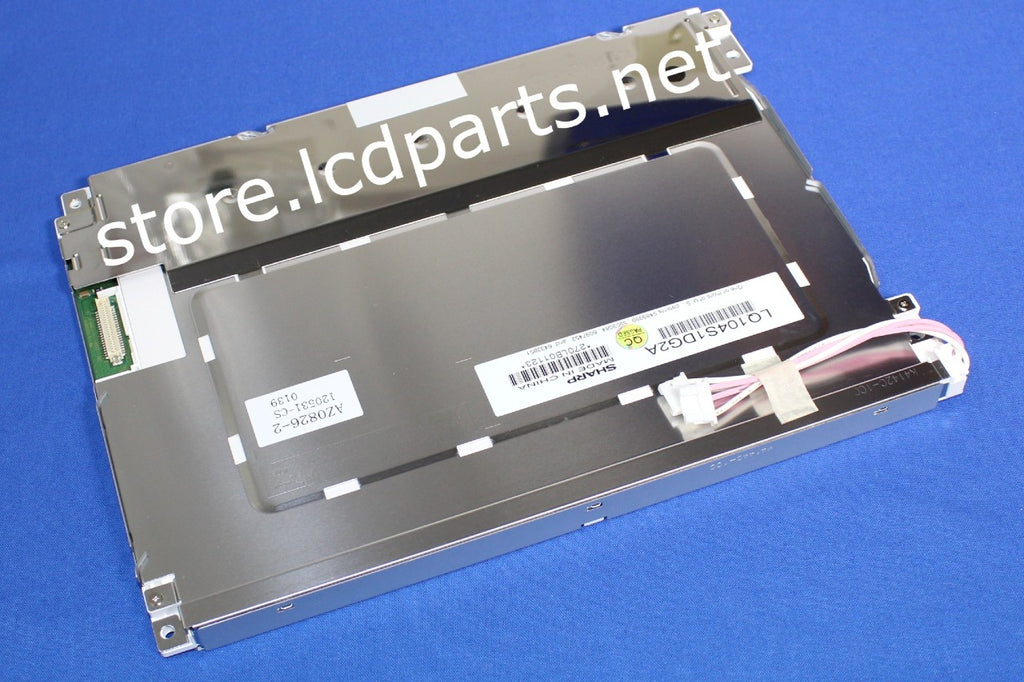

LQ104S1DG2A


Price:
$229.99

Description

New Sharp LQ104S1DG2A, 90 days warranty.

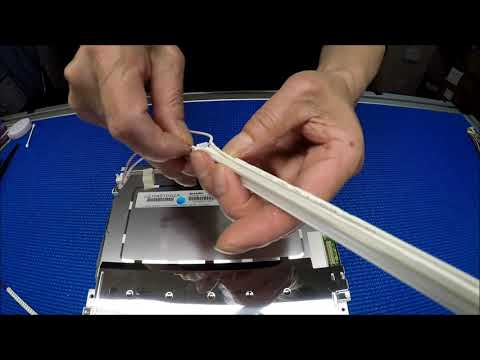

Sharp LQ104S1DG2A, one of the most popular LCD panels in an industrial application. This 10.4 inch Sharp LQ104S1DG2A is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB Series LED kit is the best option(LED Upgrade kit for sharp LQ104S1DG2A is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 10.4
Native Resolution 800 X 600
Active Area [mm] 211.2(H) X 158.4(V)
Outline dimension [mm] 246.5(W) X 179.4(H) x 15.5(D)
Bolt Hole Dimension [mm] 132.6 X 166.6
Input Voltage VDD [Volt] 3.3/5V
Screen Wire Harness TTL-DF9-41-3940
Electrical Interface TTL (6-bit)
White Luminance [cd/m2] 350
Contrast Ratio 500:1
BackLight Connector BHR-03VS-1X2
Backlight Inverter Substitute MS496DI
Response time, Rising msec 10
Response time, Falling msec 25
Viewing Angle - Horizontal degree 70
Viewing Angle - Vertical degree 60
LCD controller kit TTL-DF9-41_800X600
LED Backlight kit UB54220LED5620X1+MS610UB
