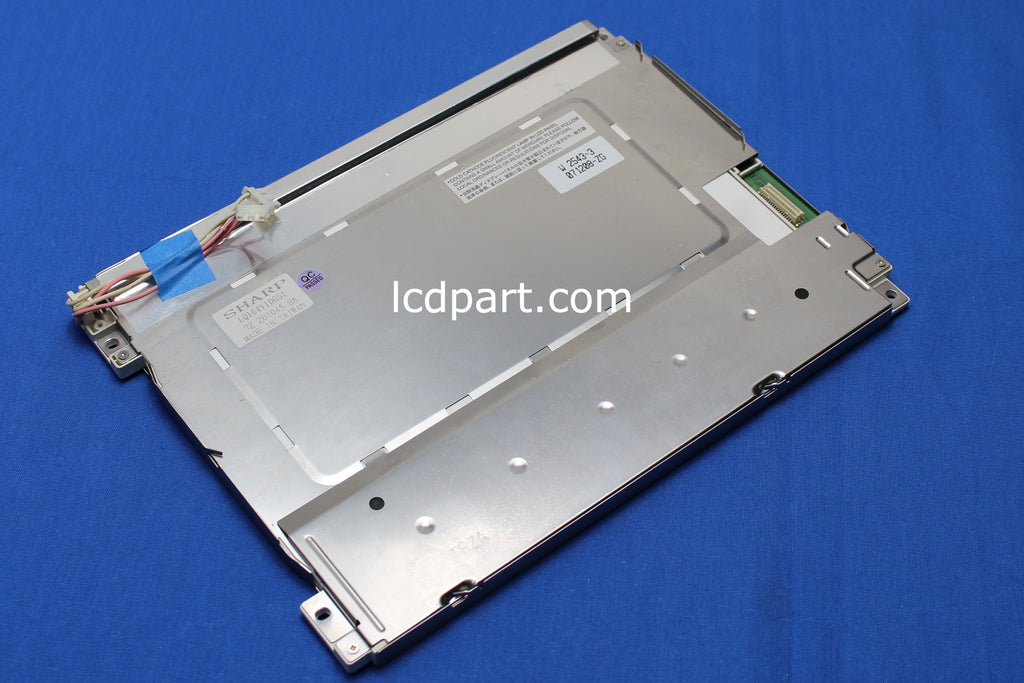

This refurbished Sharp LQ104V1DG51 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and tested. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions! 90 days warranty
Sharp LQ104V1DG51, one of the most popular LCD panels in an industrial application. This 10.4 inch Sharp LQ104V1DG51 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB54220LED5620X1+MS610UB LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for sharp LQ104V1DG51 is Listed below
|Native Resolution||640 X 480|
|Active Area||[mm]||211.2(H) X 158.4(V)|
|Outline dimension||[mm]||246.5(W) X 179.4(H) x 15.5(D)|
|Bolt Hole Dimension||[mm]||132.6 X 166.6|
|Input Voltage VDD||[Volt]||3.3/5.0V|
|Screen Wire Harness||TTL-DF9-31-2829|
|Electrical Interface||TTL (6-bit)|
|Backlight Inverter||Substitute MS496DI|
|Response time, Rising||msec||20|
|Response time, Falling||msec||40|
|Viewing Angle - Horizontal||degree||70|
|Viewing Angle - Vertical||degree||70|
|LCD controller kit||TTL-DF9-31_640X480|
|LED Backlight kit||UB54220LED5620X1+MS610UB|
|Direct Replacement LCD||MS104RSBDF931D2|
