LQ104V1DG61 10.4 inch Sharp LCD screen


Price:
$209.99

Description

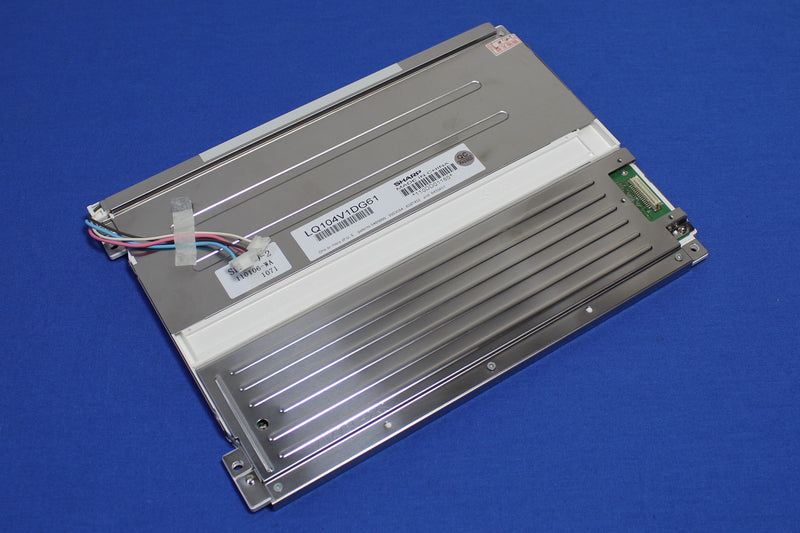

This refurbished Sharp LQ104V1DG61 LCD screen has been tested and replaced with our new CCFL backlight lamps, new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
Sharp LQ104V1DG61, one of the most popular LCD panels in an industrial application. This 10.4 inch Sharp LQ104V1DG61 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB54220LED5620X1+MS610UB LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for sharp LQ104V1DG61 is Listed below
General Specifications:
Item Unit Specifications (C17)
Screen Size [inch] 10.4
Native Resolution 640 X 480
Active Area [mm] 211.2(H) X 158.4(V)
Outline dimension [mm] 246.5(W) X 179.4(H) x 13.7(D)
Bolt Hole Dimension [mm] 132.6 X 166.6
Input Voltage VDD [Volt] 3.3/5.0V
Screen Wire Harness TTL-DF9-31-2829
Electrical Interface TTL (6-bit)
White Luminance [cd/m2] 450
Contrast Ratio 600:1
BackLight Connector BHR-03VS-1X2
Backlight Inverter Substitute MS496DI
Response time, Rising msec 10
Response time, Falling msec 25
Viewing Angle - Horizontal degree 70
Viewing Angle - Vertical degree 60
LCD controller kit TTL-DF9-31_640X480
LED Backlight kit UB54220LED5620X1+MS610UB
Direct Replacement LCD MS104RSBDF931D2+DISENA
