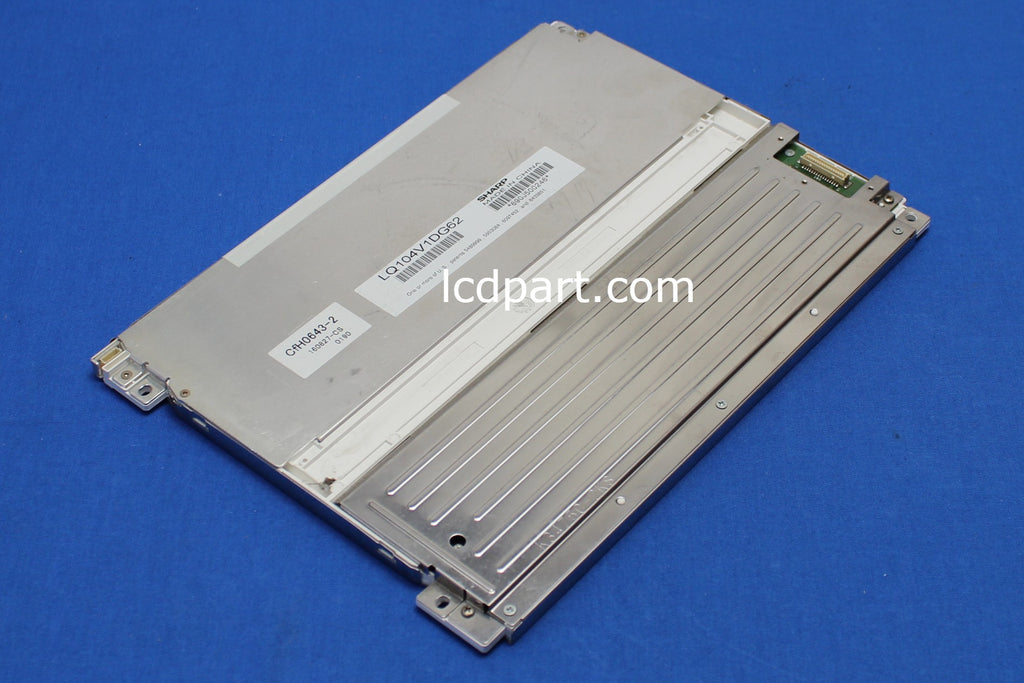

LQ104V1DG62 10.4 inch Sharp LCD screen

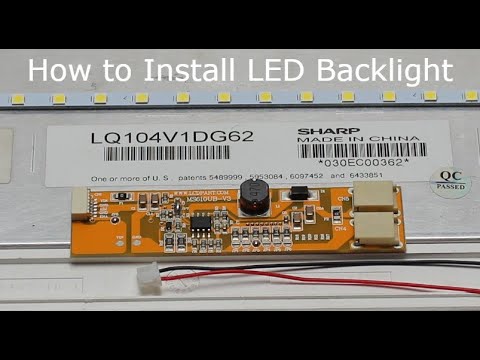

Sharp LQ104V1DG62, one of the most popular LCD screens in an industrial control, medical and others applications. This 10.4 inch Sharp LQ104V1DG62 is originally equipped with its manufacture's LED backlight strip and driver, which has typically 550 nits (based on its datasheet). By upgrading to our SB44220X12RD LED kit, it can reach 1500 nits or higher. easy to install, no technical skill require, anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 10.4
Native Resolution 640 X 480
Active Area [mm] 211.2(H) X 158.4(V)
Outline dimension [mm] 246.5(W) X 179.4(H) x 12.5(D)
Bolt Hole Dimension [mm] 132.6 X 166.6
Input Voltage VDD [Volt] 3.3/5.0V
Screen Wire Harness TTL-DF9-31-2829
Electrical Interface TTL (6-bit)
White Luminance [cd/m2] 550
Contrast Ratio 600:1
BackLight Connector SHR-06V-S-B, 1.0mm 6P, MS202CN
Backlight Inverter 18.6V, 80ma, 3 strings
Response time, Rising msec 10
Response time, Falling msec 25
Viewing Angle - Horizontal degree 70
Viewing Angle - Vertical degree 60
LCD controller kit TTL-DF9-31_640X480
LED Backlight kit SB44220X12RD
Direct Replacement LCD MS104RSBDF931D2
