LQ104V1DG81 Sharp 10.4 inch LCD Screen


Price:
$219.99

Description

Refurbished Sharp LQ104V1DG81, 90 days warranty.

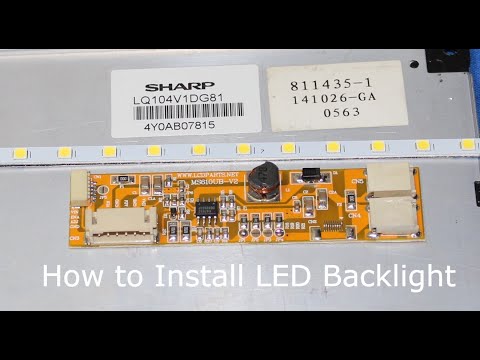

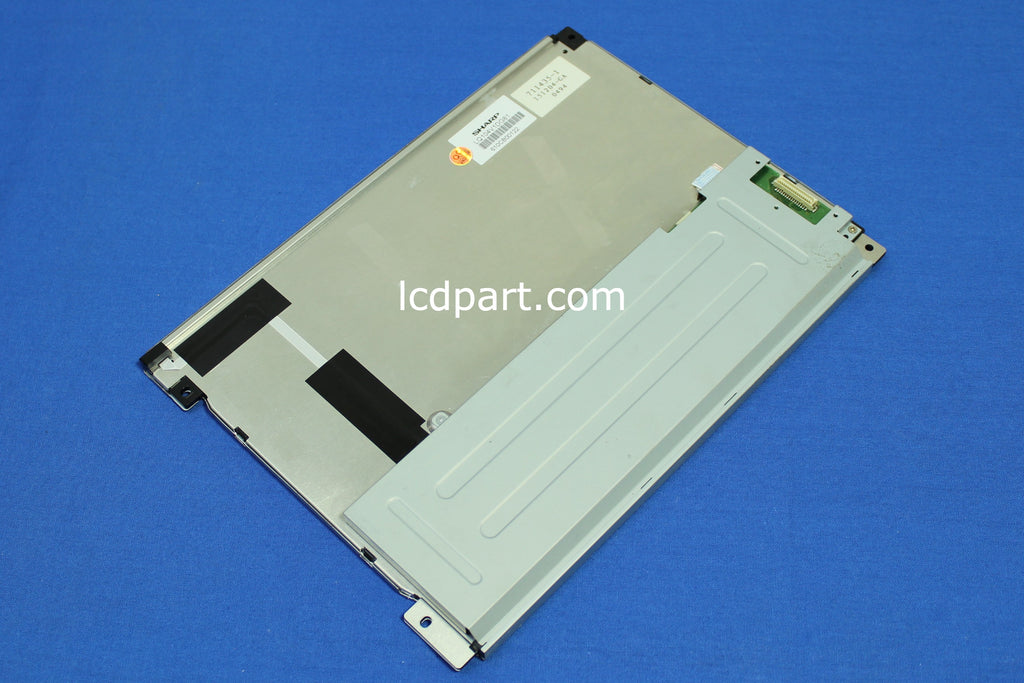

Sharp LQ104V1DG81, one of the most popular LCD panels in an industrial application. This 10.4 inch Sharp LQ104V1DG81 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB Series LED kit is the best option(LED Upgrade kit for sharp LQ104V1DG81 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 10.4
Native Resolution 640 X 480
Active Area [mm] 211.2(H) X 158.4V)
Outline dimension [mm] 246.5(W) X 179.3(H) X 12.5(D)
Bolt Hole Dimension [mm] 132.6 X 166.6
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF9-31-2829
Electrical Interface TTL
White Luminance [cd/m2] 450
Contrast Ratio 800
BackLight Connector SHLP-06V-S-B, 1.0mm 6P(MS573EXT)
Backlight Inverter P1~P2=+12V, P3~P4=GND, P5=ENA, P6=PWM
Response time, Rising msec N/A
Response time, Falling msec  tr+tf=35
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS_800X600-6Bit
LED Backlight kit SB44220LED21652R+MS202CN
Direct Replacement LCD MS104RSBDF931D2+DISENA
