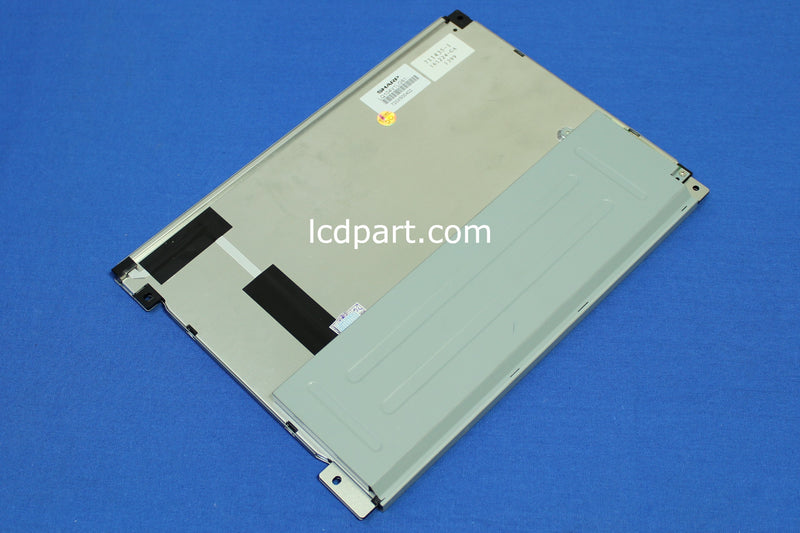

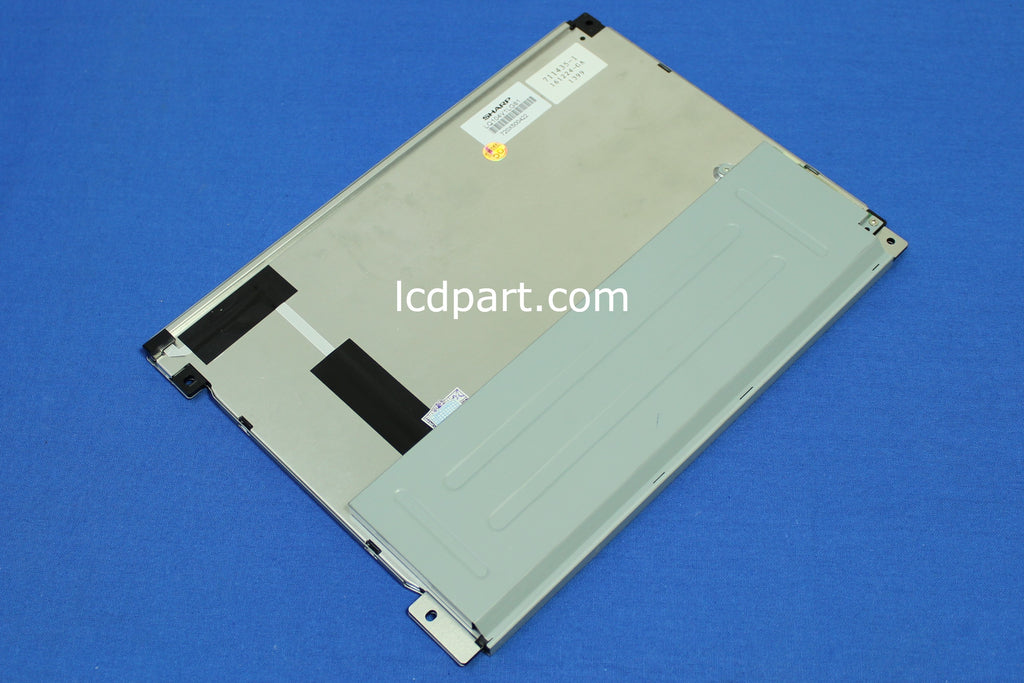

LQ104V1LG81 Sharp 10.4 inch LCD Screen


Price:
$209.99

Description

This refurbished Sharp LQ104V1LG81 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
Sharp LQ104V1LG81, one of the most popular LCD screens in control industrial and medical applications. This 10.4 inch Sharp LQ104V1LG81 is originally equipped with its manufacturer's LED back light strip with built-in LED driver, which has typically 450 nits (based on its datasheet). By upgrading to our SB44220LED21652R LED kit, it can reach 1000 nits or higher.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications (C17)
Screen Size [inch] 10.4
Native Resolution 640 X 480
Active Area [mm] 211.2(H) X 158.4V)
Outline dimension [mm] 246.5(W) X 179.3(H) X 12.5(D)
Bolt Hole Dimension [mm] 132.6 X 166.6
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20--LVDS
Electrical Interface LVDS
White Luminance [cd/m2] 450
Contrast Ratio 800
BackLight Connector SHLP-06V-S-B, 1.0mm 6P(MS573EXT)
Backlight Inverter P1~P2=+12V, P3~P4=GND, P5=ENA, P6=PWM
Response time, Rising msec N/A
Response time, Falling msec  tr+tf=35
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit
LED Backlight kit SB44220LED21652R
Direct Replacement LCD MS104RSBDF931D2+DISENA
