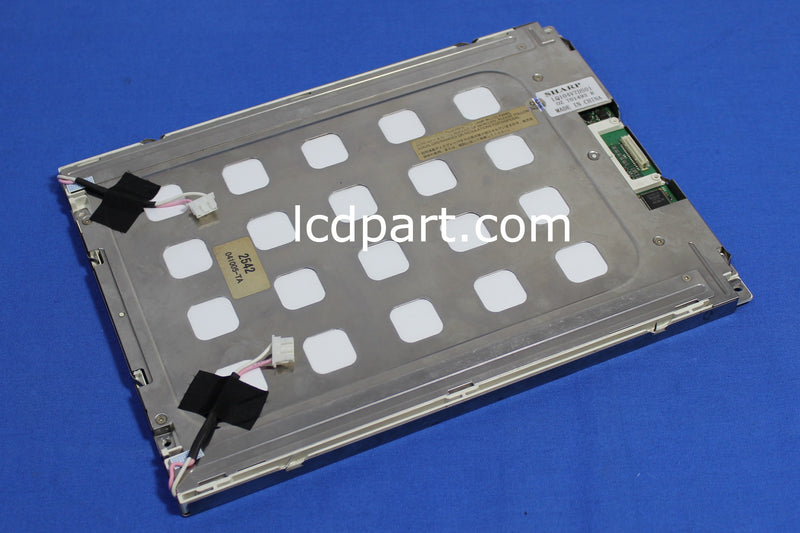

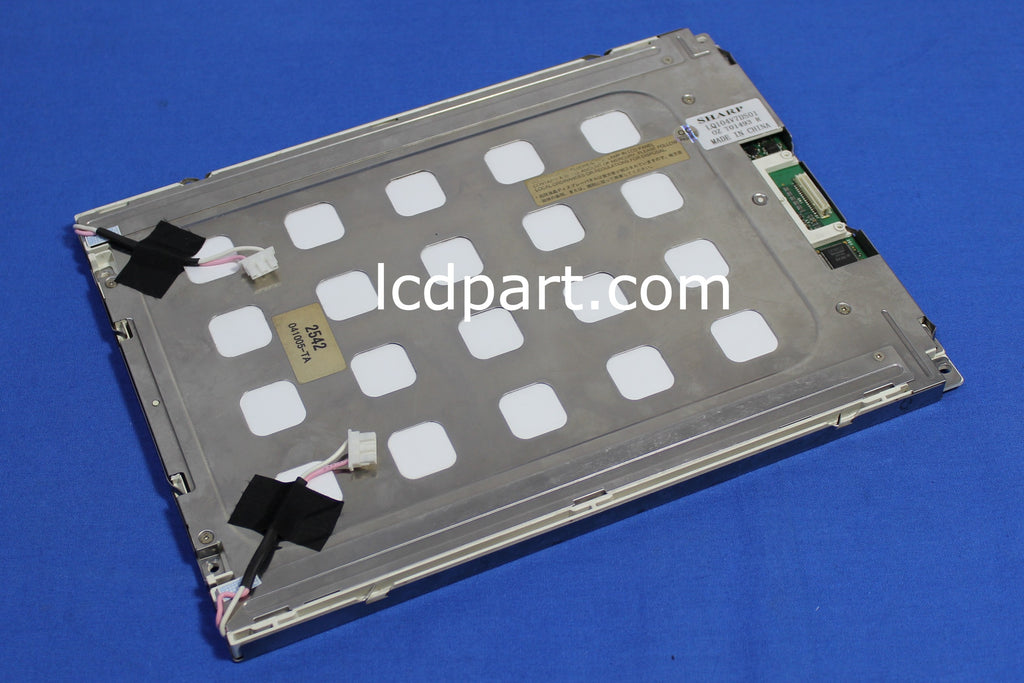

LQ104V7DS01 10.4 inch Sharp LCD screen


Price:
$269.99

Description

This refurbished Sharp LQ104V7DS01 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and tested. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions! 90 days warranty
Sharp LQ104V7DS01, one of the most popular LCD panels in an industrial application. This 10.4 inch Sharp LQ104V7DS01 is originally equipped with dual CCFL back light lamps. To extend its life and improve its performance, upgrading it to our UB54220LED5620X2+MS610UB LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 90 days warranty.
LED Upgrade kit for sharp LQ104V7DS01 is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 10.4
Native Resolution 640 X 480
Active Area [mm] 211.2(H) X 158.4(V)
Outline dimension [mm] 265.0(W) X 195.0(H) x 11.5(D)
Bolt Hole Dimension [mm] 132.6 X 182.0
Input Voltage VDD [Volt] 3.3/5.0V
Screen Wire Harness TTL-DF9-31-2829
Electrical Interface TTL (6-bit)
White Luminance [cd/m2] 250
Contrast Ratio 250:1
BackLight Connector BHR-03VS-1X2
Backlight Inverter Substitute MS235DI
Response time, Rising msec 20
Response time, Falling msec 40
Viewing Angle - Horizontal degree 45
Viewing Angle - Vertical degree 45
Compatible with MS104RBHR03X2DF931D5
LCD controller kit TTL-DF9-31_640X480
LED Backlight kit UB54220LED5620X2+MS610UB
Direct Replacement LCD MS104RUBDF931D5
