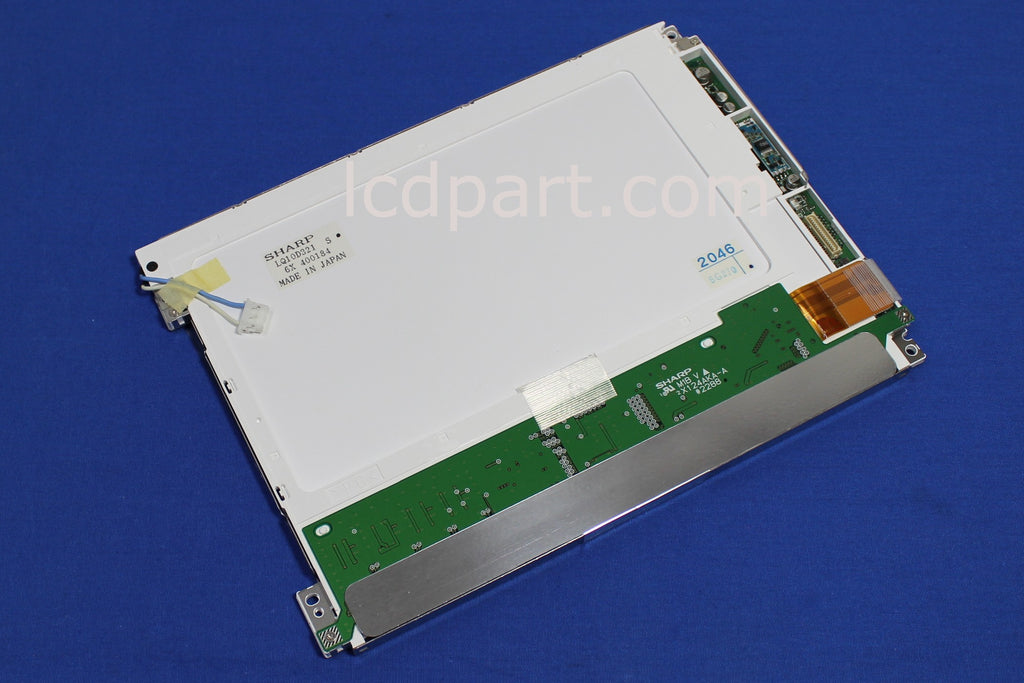

LQ10D321, 10.4 inch Sharp LCD screen


Price:
$199.99

Description

This refurbished Sharp LQ10D321 LCD screen has been replaced with our new CCFL back light lamp, new polarize film and there are no scratches and no pressure marks on the screens. Guaranteed! Like new conditions! 90 days warranty.
Sharp LQ10D321 , one of the most popular LCD panels in an industrial application. This 10.4 inch Sharp LQ10D321 is originally equipped with dual CCFL back light lamps. To extend its life and improve its performance, upgrading it to our UB35220LED4215X1+MS610UB LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for sharp LQ10D321 is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 10.4
Native Resolution 640 X 480
Active Area [mm] 211.2(H) X 158.4(V)
Outline dimension [mm] 245.0(W) X 179.4.0(H) X 10.0(D)
Bolt Hole Dimension [mm] 132.6 X 166.6
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness TTL-DF9-31-2829
Electrical Interface TTL (6-bit)
White Luminance [cd/m2] 200
Contrast Ratio 250
BackLight Connector BHR-03VS-1X1
Backlight Inverter Substitute MS397DI
Response time, Rising msec N/A
Response time, Falling msec N/A
Viewing Angle - Horizontal degree N/A
Viewing Angle - Vertical degree N/A
LCD controller kit TTL-DF9-31_640X480
LED Backlight kit UB35220LED4215X1+MS610UB
