LQ10D36A


Price:
$299.99

Description

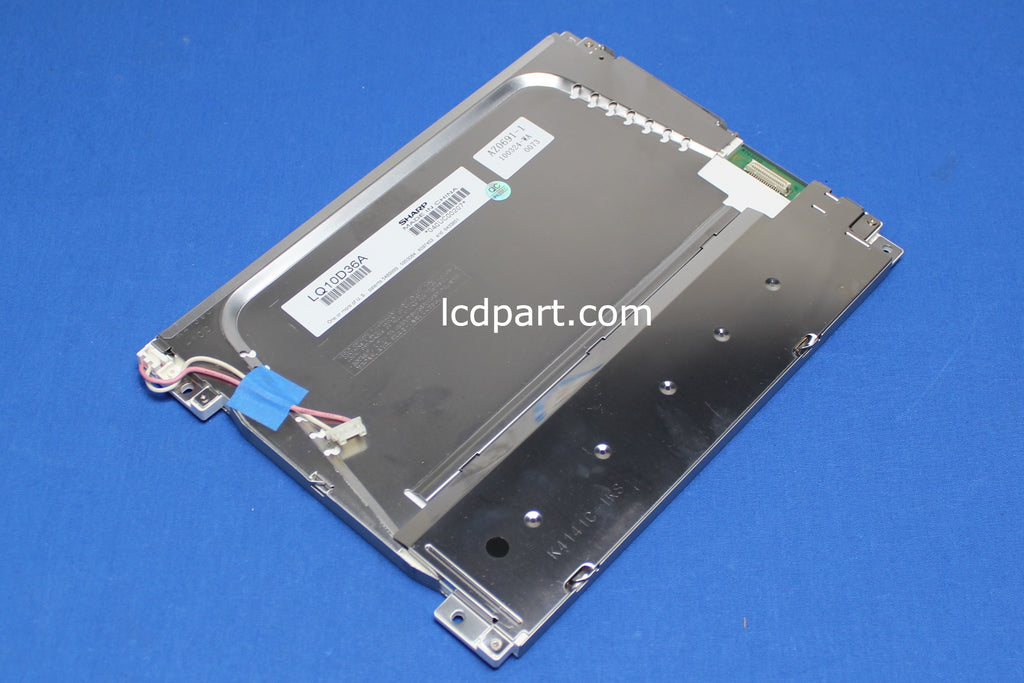

This refurbished Sharp LQ10D36A LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and there are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty

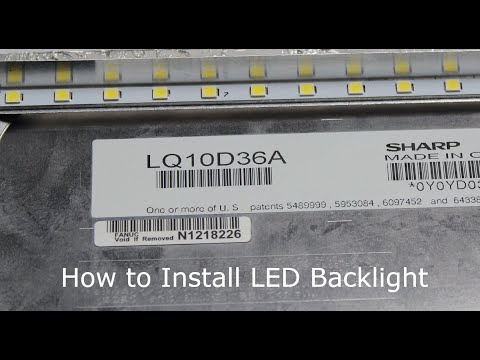

Sharp LQ10D36A, one of the most popular LCD panels in an industrial application. This 10.4 inch Sharp LQ10D368 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrade to our LQ10D36A-LEDKIT is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 10.4
Native Resolution 640 X 480
Active Area [mm] 211.2(H) X 158.4(V)
Outline dimension [mm] 246.5(W) X 179.4(H) x 11.0(D)
Bolt Hole Dimension [mm] 132.6 X 166.6
Input Voltage VDD [Volt] 3.3/5V
Screen Wire Harness TTL-DF9-31-2829
Electrical Interface TTL (6-bit)
White Luminance [cd/m2] 200
Contrast Ratio 500:1
Backlight Connector BHR-03VS-1X1
Backlight Inverter Substitute MS397DI
Response time, Rising msec 10
Response time, Falling msec 25
Viewing Angle - Horizontal degree 60
Viewing Angle - Vertical degree 70
LCD controller kit TTL-DF9-31_640X480
LED Backlight kit LQ10D36A-LEDKIT
