Description

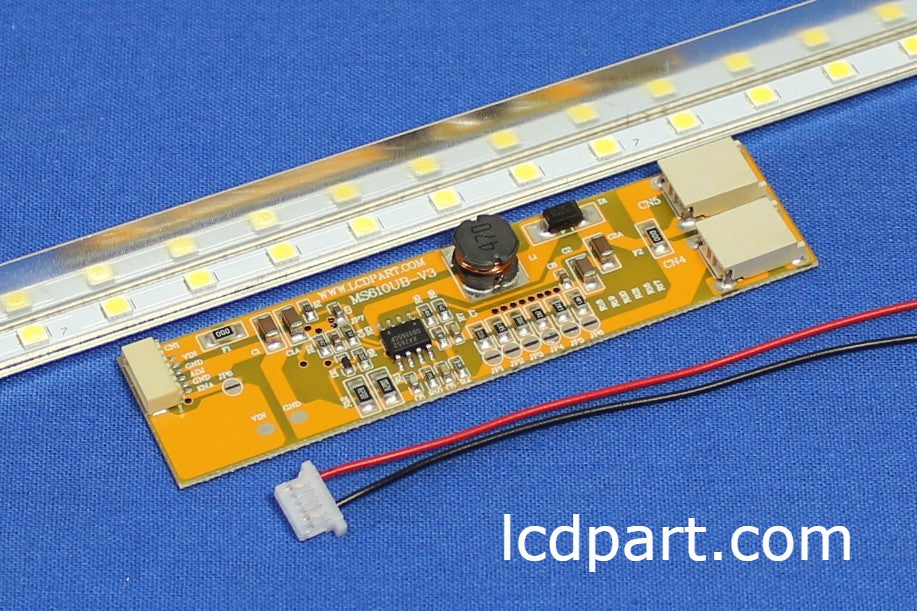

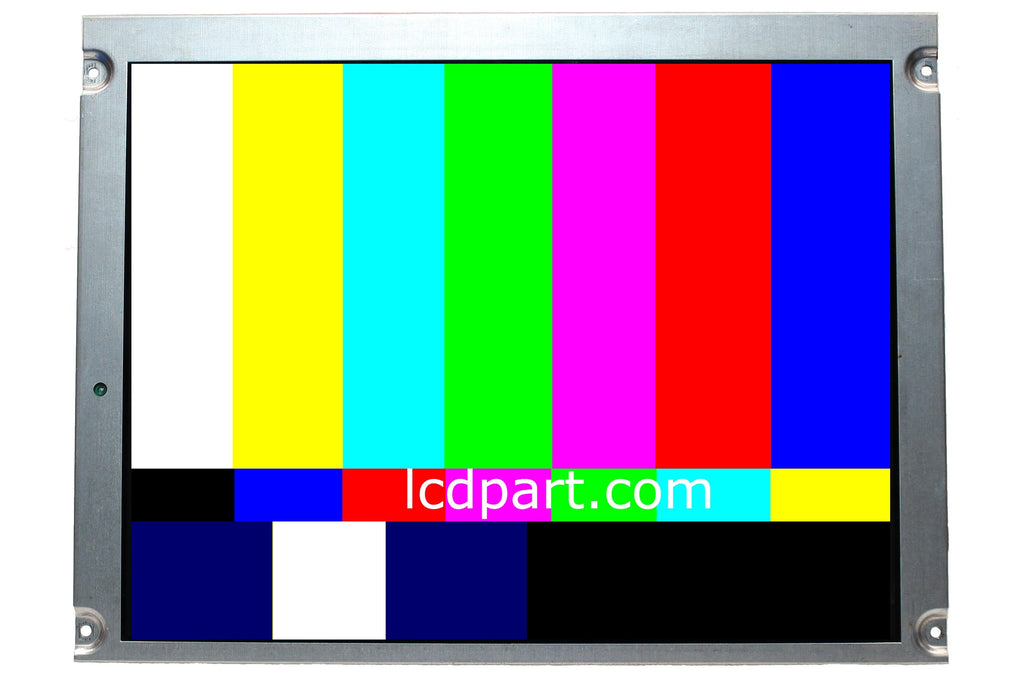

LQ10D36A-LCD is a direct replacement for Sharp LQ10D36A. LQ10D36A-LCD has a much better image quality and is much brighter than old LQ10D36A. Wider viewing angle and faster response time then old LQ10D36A. LQ10D36A-LCD has upgraded our LQ10D36A-LEDKIT upgrade Kit and LQ10D36A-LCD will last 10X longer than CCFL lamps.
No technical skills required! Soldering is required! It is easy to Install! Anyone can do it! Connect +12V or 24V DC to Red wire and connect negative (GND) to Black wire! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from main board
Disconnect Screen wire harness on LQ10D36A
Remove old LQ10D36A
Mount LQ10D36A-LCD back to the same location
Connect Screen wire harness to LQ10D36A-LCD
Connect +12V or 24V DC to Red wire and connect negative (GND) to Black wire!
Note: LQ10D36A-LCD has the same interface connector, dimension and screw hole as old LQ10D36A
