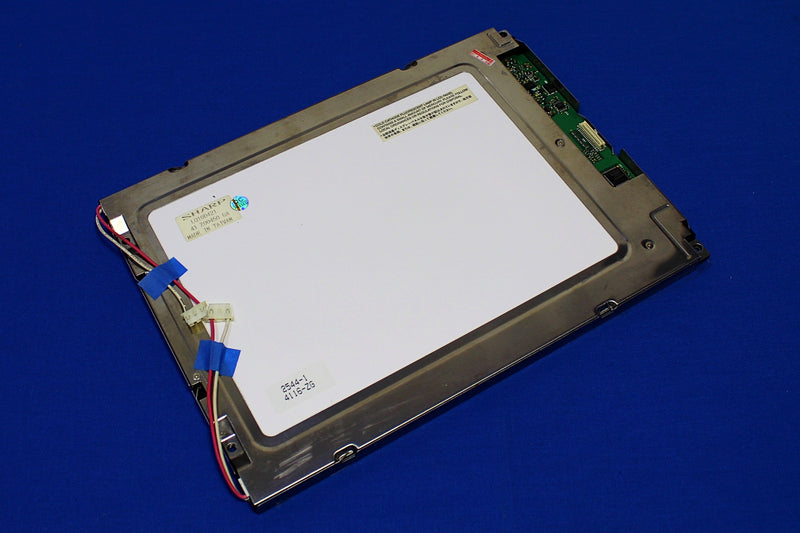

This refurbished Sharp LQ10D421 LCD screen has been tested and replaced with our new CCFL back light lamps, new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
Sharp LQ10D421, one of the most popular LCD panels in an industrial application. This 10.4 inch Sharp LQ10D421 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB Series LED kit is the best option(LED Upgrade kit for Sharp LQ10D421 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
|Native Resolution||640 X 480|
|Active Area||[mm]||211.2(H) X 158.4(V)|
|Outline dimension||[mm]||265.0(W) X 195.0(H) x 11.5(D)|
|Bolt Hole Dimension||[mm]||132.6 X 182.0|
|Input Voltage VDD||[Volt]||5V|
|Screen Wire Harness||TTL-DF9-31-2829|
|Electrical Interface||TTL (6-bit)|
|Backlight Inverter||Substitute MS179DI|
|Response time, Rising||msec||20|
|Response time, Falling||msec||40|
|Viewing Angle - Horizontal||degree||70|
|Viewing Angle - Vertical||degree||70|
|LCD controller kit||TTL-DF9-31_640X480|
|LED Backlight kit||UB54220LED5620X2+MS610UB|
|Direct Replacement LCD||MS104RUBDF931D5+DISENA|
