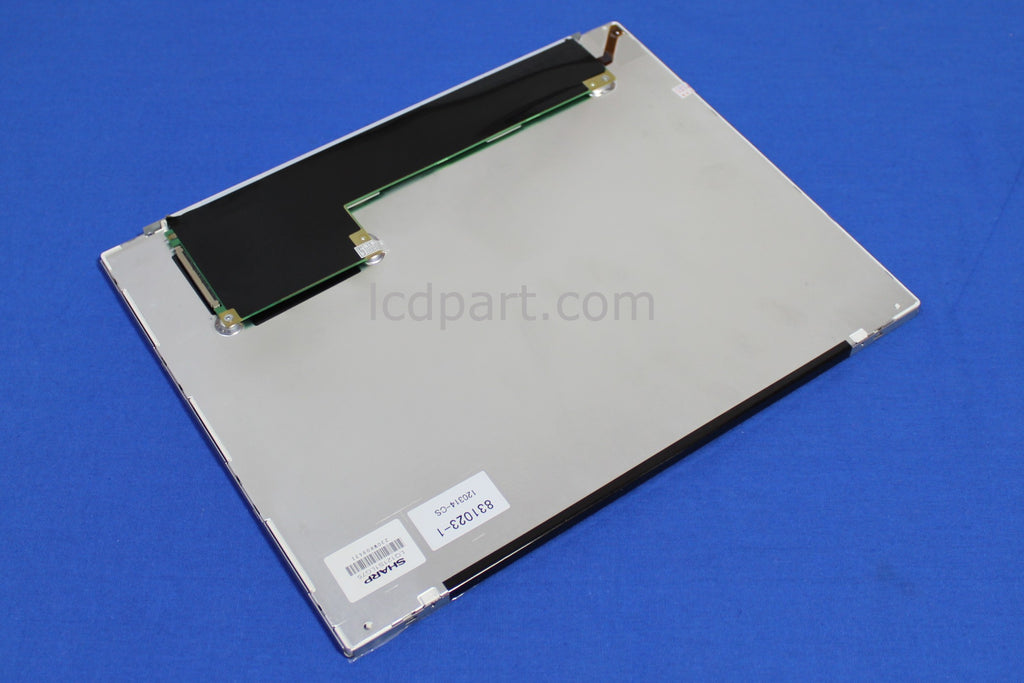

LQ121S1LG75, 12.1 inch Sharp LCD screen



Refurbished Sharp LQ121S1LG75 (LED Backlight, Like new condition). 90 days warranty.
Sharp LQ121S1LG75, one of the most popular LCD panel in an industrial control application. This 12.1 inch Sharp LQ121S1LG75 is originally equipped with LED back light.
General Specifications:
Item Unit Specifications
Screen Size [inch] 12.1
Native Resolution 800 X 600
Active Area [mm] 246.0(H) X 184.5(V)
Outline dimension [mm] 265.0(W) X 205.0(H) x 9.5(D)
Bolt Hole Dimension [mm] 217.8 X 197.8
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness FIX-30S-1LVDS-B2122
Electrical Interface LVDS (8-bit), (P2, 8Bit=OP/NC, 6Bit=GND)
White Luminance [cd/m2] 330
Contrast Ratio 800
BackLight Connector Part of Screen wire, P27/P28
Backlight Inverter LED, Build-In, 12V
Response time, Rising msec N/A
Response time, Falling msec 30
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
