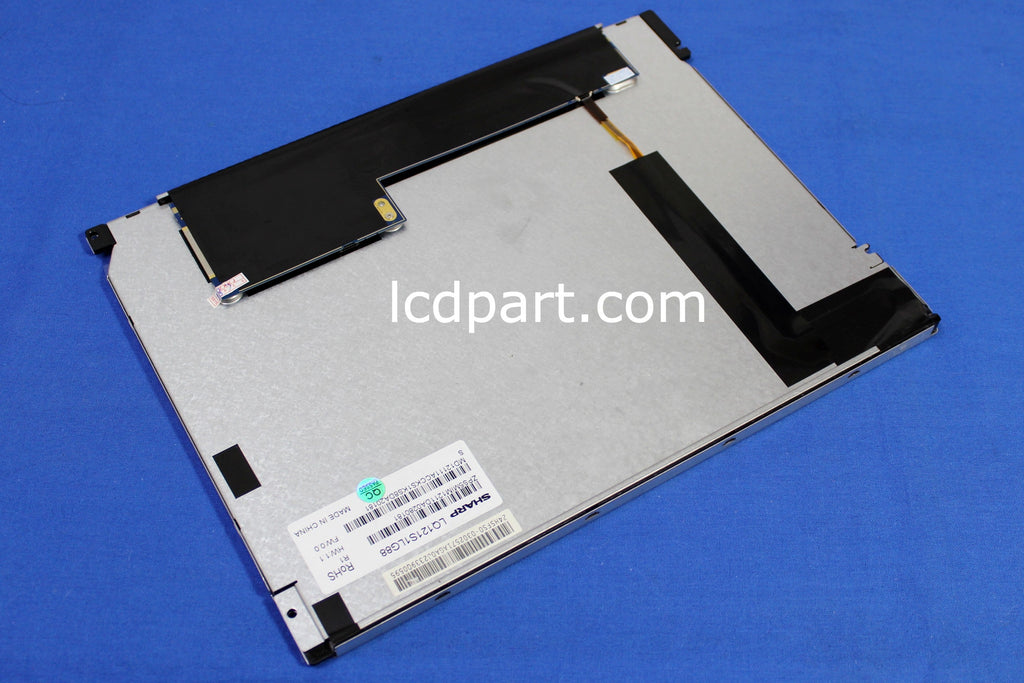

LQ121S1LG84, 12.1 inch Sharp LCD screen


Price:
$219.99

Description

This refurbished Sharp LQ121S1LG84 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
General Specifications:
Item Unit Specifications
Screen Size [inch] 12.1
Native Resolution 800 X 600
Active Area [mm] 246.0(H) X 184.5(V)
Outline dimension [mm] 276.0(W) X 209.0(H) x 9.1(D)
Bolt Hole Dimension [mm] 138.0 X 185.8
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS(6-bit)
White Luminance [cd/m2] 450
Contrast Ratio 800
BackLight Connector SHLP-06V-S-B, 1.0mm 6P(MS573EXT)
Backlight Inverter P1~P2=+12V, P3~P4=GND, P5=ENA, P6=PWMI
Response time, Rising msec N/A
Response time, Falling msec tr+tf=30
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS_800X600-6Bit
Direct Replacement LCD MS121RSBDF1420D3
