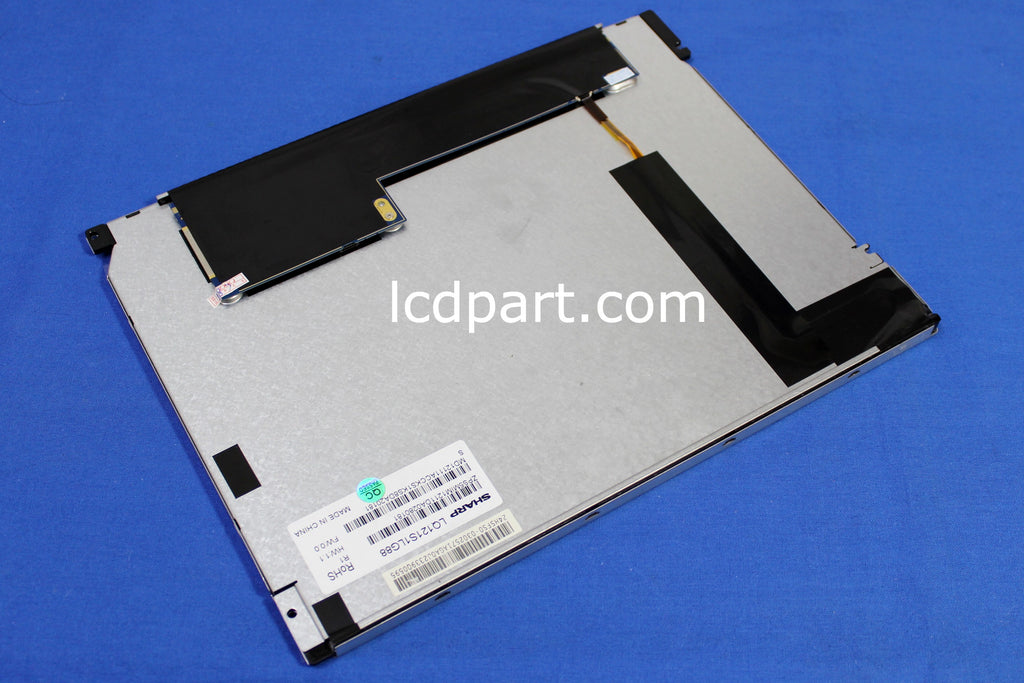

LQ121S1LG88, 12.1 inch Sharp LCD screen


Price:
$219.99

Description

This Refurbished(Like new condition) Sharp LQ121S1LG88 LCD screen comes with a 90 days warranty.
Sharp LQ121S1LG88, one of the most popular LCD panels in an industrial application. This 12.1 inch Sharp LQ121S1LG88 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our SB44255LED24651R7 LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for sharp LQ121S1LG88 is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 12.1
Native Resolution 800 X 600
Active Area [mm] 246.0(H) X 184.5(V)
Outline dimension [mm] 276.0(W) X 209.0(H) x 9.1(D)
Bolt Hole Dimension [mm] 138.0 X 185.8
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS(6-bit)
White Luminance [cd/m2] 450
Contrast Ratio 800
BackLight Connector SHLP-06V-S-B, 1.0mm 6P(MS573EXT)
Backlight Inverter P1~P2=+12V, P3~P4=GND, P5=ENA, P6=PWMI
Response time, Rising msec N/A
Response time, Falling msec tr+tf=30
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS_800X600-6Bit
LED Backlight kit SB44255LED24651R7
Direct Replacement LCD MS121RSBDF1420D3
