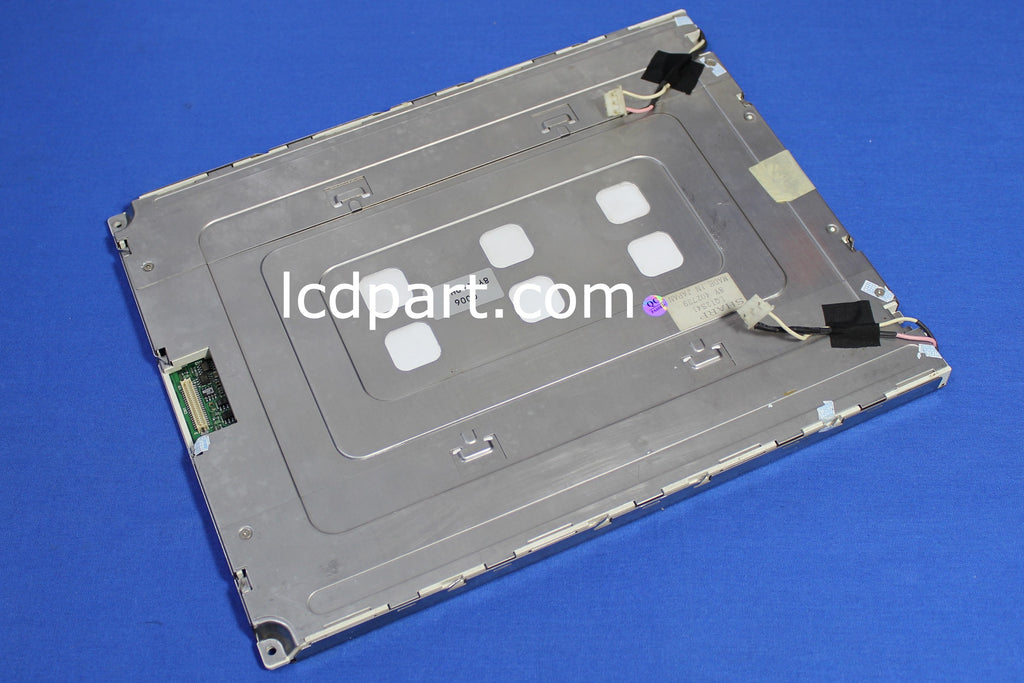

LQ12S41 12.1 inch Sharp LCD screen


Price:
$199.99

Description

This refurbished Sharp LQ12S41 LCD screen has been replaced with our new CCFL back light lamps, new polarize film and there are no scratches and no pressure marks on the screens. Guaranteed! Like new condition ! 90 days warranty
Sharp LQ12S41, one of the most popular LCD panels in an industrial application. This 12.1 inch Sharp LQ12S41 is originally equipped with dual CCFL back light lamps. To extend its life and improve its performance, upgrading it to our UB54255LED6420X2+MS610UB LED kit is the best option(LED Upgrade kit for sharp LQ12S41 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications(C19)
Screen Size [inch] 12.1
Native Resolution 800 X 600
Active Area [mm] 246.0(H) X 184.5(V)
Outline dimension [mm] 290.0(W) X 225.0(H) X 13.2(D)
Bolt Hole Dimension [mm] 171 X 213
Input Voltage VDD [Volt] 3.3/5V
Screen Wire Harness TTL-DF9-41-3940
Electrical Interface TTL (6-bit)
White Luminance [cd/m2] 270
Contrast Ratio 300:1
BackLight Connector BHR-03VS-1X2
Backlight Inverter Substitute MS179DI
Response time, Rising msec 15
Response time, Falling msec 30
Viewing Angle - Horizontal degree 120
Viewing Angle - Vertical degree 90
LCD controller kit TTL-DF9-41_800X600
LED Backlight kit UB54255LED6420X2+MS610UB
