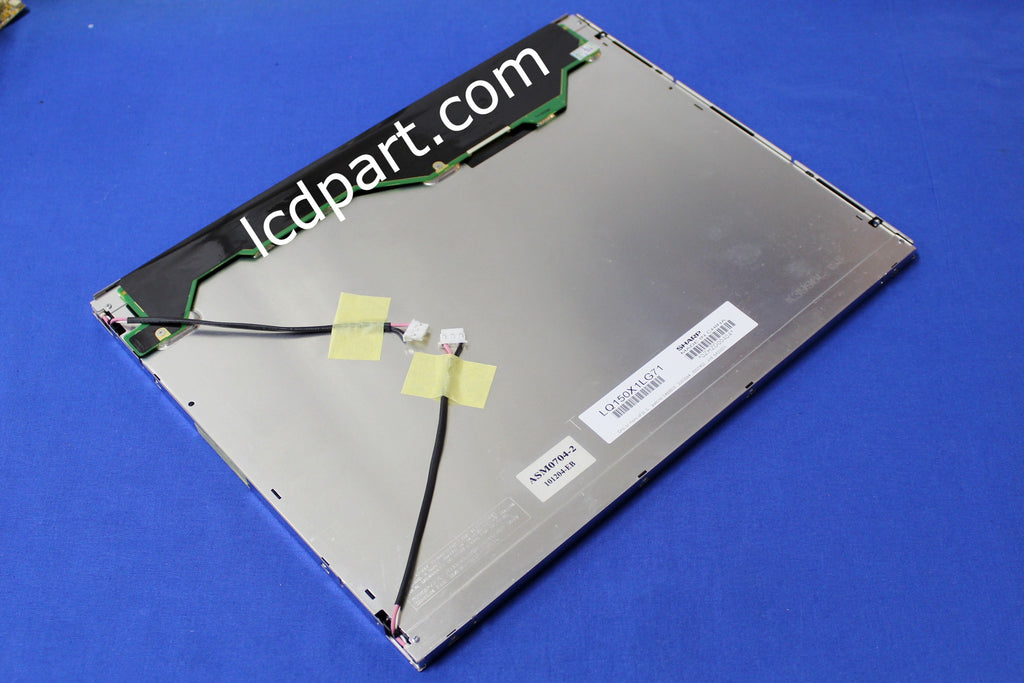

This refurbished Sharp LQ150X1LG81 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and there are no scratches and no pressure marks on the screens. Guaranteed! Like new conditions! 90 days warranty.

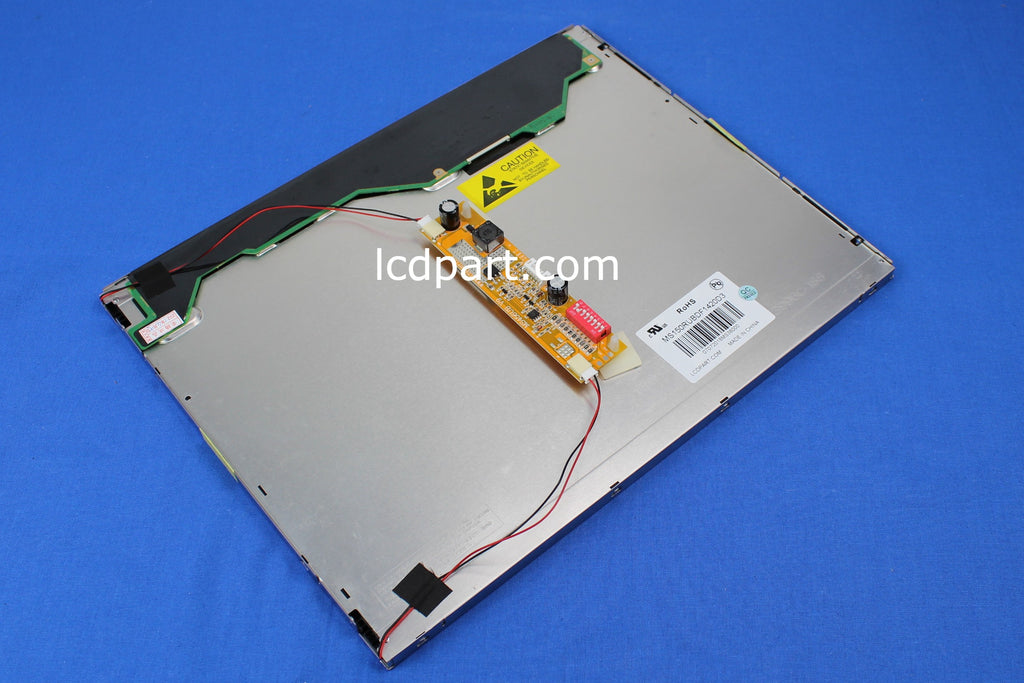

Sharp LQ150X1LG81, one of the most popular LCD panels in an industrial application. This 15 inch Sharp LQ150X1LG81 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB36318LED6420X2 LED kit is the best option(LED Upgrade kit for sharp LQ150X1LG81 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
|Native Resolution||1024 X 768|
|Active Area||[mm]||304.1(H) X 228.1(V)|
|Outline dimension||[mm]||326.0(W) X 252.0(H) X 11.2(D)|
|Bolt Hole Dimension||[mm]||200 X 200|
|Input Voltage VDD||[Volt]||3.3V|
|Screen Wire Harness||DF14-20P-1LVDS|
|Electrical Interface||LVDS(6-bit), P20: 6 Bit=O/NC, 8 Bit=H(3.3V)|
|Backlight Inverter||Substitute MS179DI|
|Response time, Rising||msec||2|
|Response time, Falling||msec||6|
|Viewing Angle - Horizontal||degree||45|
|Viewing Angle - Vertical||degree||60|
|LCD controller kit||DF14-20P-1LVDS_1024X768-6B|
|LED Backlight kit||UB36318LED6420X2|
