Description

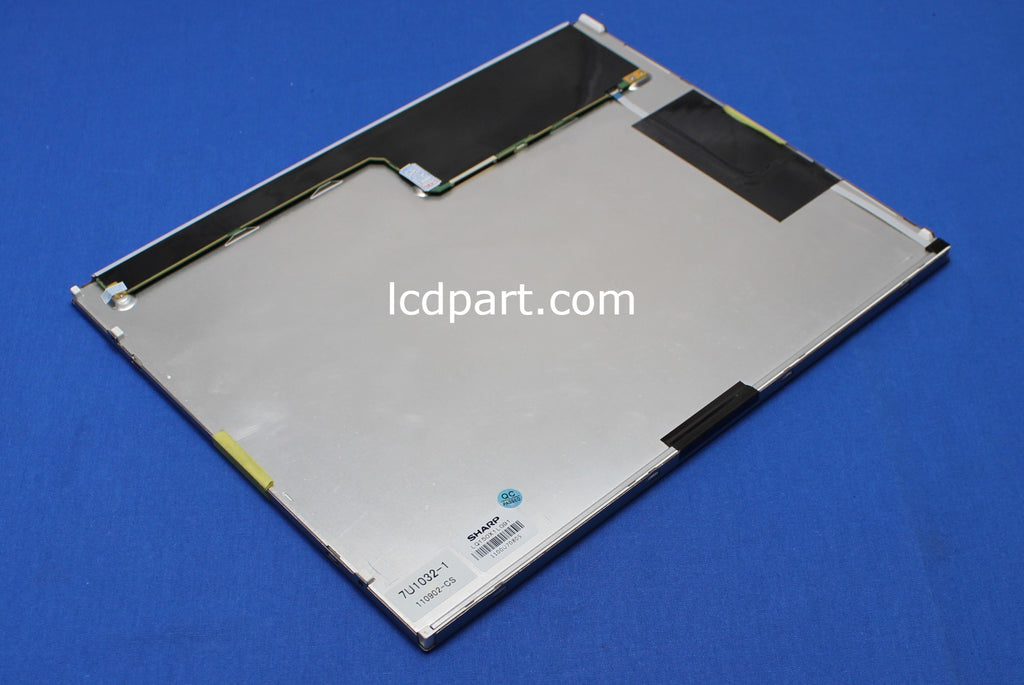

This New Sharp LQ150X1LG91 LCD screen. 90 days warranty
Sharp LQ150X1LG91, one of the most popular LCD screens in control industrial and medical applications. This 15 inch Sharp LQ150X1LG91 is originally equipped with its manufacturer's LED backlight strip with built-in LED driver, which has typically 400 nits (based on its datasheet). By upgrading to our SB44318X11R5 LED kit, it can reach 1300 nits or higher.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it! 90 days warranty.
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 15 |
Native Resolution | 1024 X 768 | |
Active Area | [mm] | 304.1(H) X 228.1((V) |
Outline dimension | [mm] | 326.5(W) X 253.5(H) x 9.6(D) |
Bolt Hole Dimension | [mm] | 176 X 224 |
Input Voltage VDD | [Volt] | 3.3V |
Screen Wire Harness | DF14-20P-1LVDS | |
Electrical Interface | LVDS(8-bit), P20, 6 Bit=H(3.3V), 8 Bit=O/NC | |
White Luminance | [cd/m2] | 350 |
Contrast Ratio | 800:1 | |
Backlight Connector | SHLP-06V-S-B 6P 1.0mm(MS573EXT) | |
Backlight Inverter | P1/P2=12V, P3/P4=GND, P5=ENA, P6=PWM | |
Response time, Rising | msec | tr+tf=30 |
Response time, Falling | msec | N/A |
Viewing Angle - Horizontal | degree | 80 |
Viewing Angle - Vertical | degree | 80 |
Compatible with | MS150RMS573EXTDF1420D18B | |
LCD controller kit | DF14-20P-1LVDS_1024X768-8Bit | |
LED Backlight kit | SB44318X11R5 | |
Direct Replacement LCD | MS150RSBDF1420D1 |
