Description
This refurbished Sharp LQ150X1LW73 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and there are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty

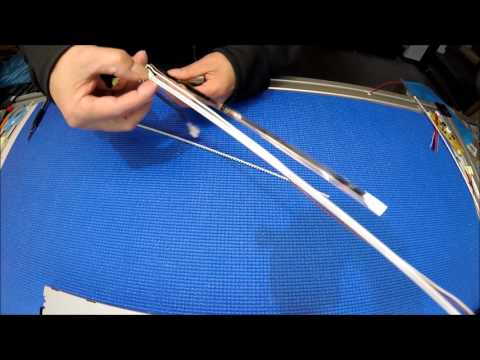

Sharp LQ150X1LW73W , one of the most popular LCD panels in an industrial application. This 15 inch Sharp LQ150X1LW73 is originally equipped with dual CCFL back light lamps. To extend its life and improve its performance, upgrading it to our UB54318LED8020X2 LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtails connector is included. It is easy to Install! Anyone can do it!
LED Upgrade kit for sharp LQ150X1LW73 is Listed below
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 15 |
Native Resolution | 1024 X 768 | |
Active Area | [mm] | 304.1(H) X 228.1(V) |
Outline dimension | [mm] | 331.6(W) X 254.76(H) X 12.5(D) |
Bolt Hole Dimension | [mm] | 200 X 212 |
Input Voltage VDD | [Volt] | 3.3V |
Screen Wire Harness | DF14-20P-1LVDS | |
Electrical Interface | LVDS(8-bit), P20: 6 Bit=H(3.3V), 8 Bit=O/NC | |
White Luminance | [cd/m2] | 350 |
Contrast Ratio | 600:1 | |
Backlight Connector | BHSR-02VS-1X4 | |
Backlight Inverter | Substitute MS30DI | |
Response time, Rising | msec | tr+tf=25 |
Response time, Falling | msec | N/A |
Viewing Angle - Horizontal | degree | 85 |
Viewing Angle - Vertical | degree | 85 |
LCD controller kit | DF14-20P-1LVDS_1024X768-8Bit | |
LED Backlight kit | UB54318LED8020X2 | |
Direct Replacement LCD | MS150RUBDF1420D2 |
