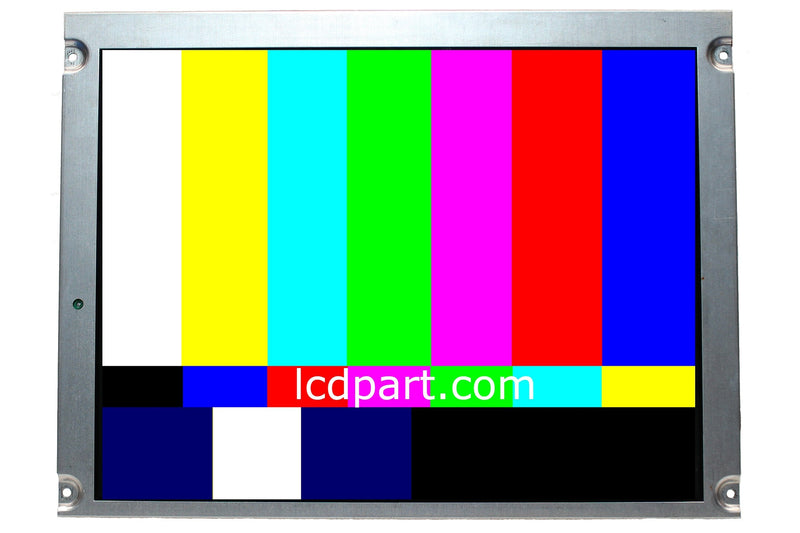

LQ150X1LW73-LCD is a direct replacement for LQ150X1LW73. LQ150X1LW73-LCD has a much better image quality and is much brighter than old LQ150X1LW73. Wider viewing angle and faster response time then old LQ150X1LW73. LQ150X1LW73-LCD has upgraded our Sunlight Readable LED Kit and LQ150X1LW73-LCD will last 10X longer than CCFL lamps.
A wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 1 year warranty.
Installation takes about 15 minutes.

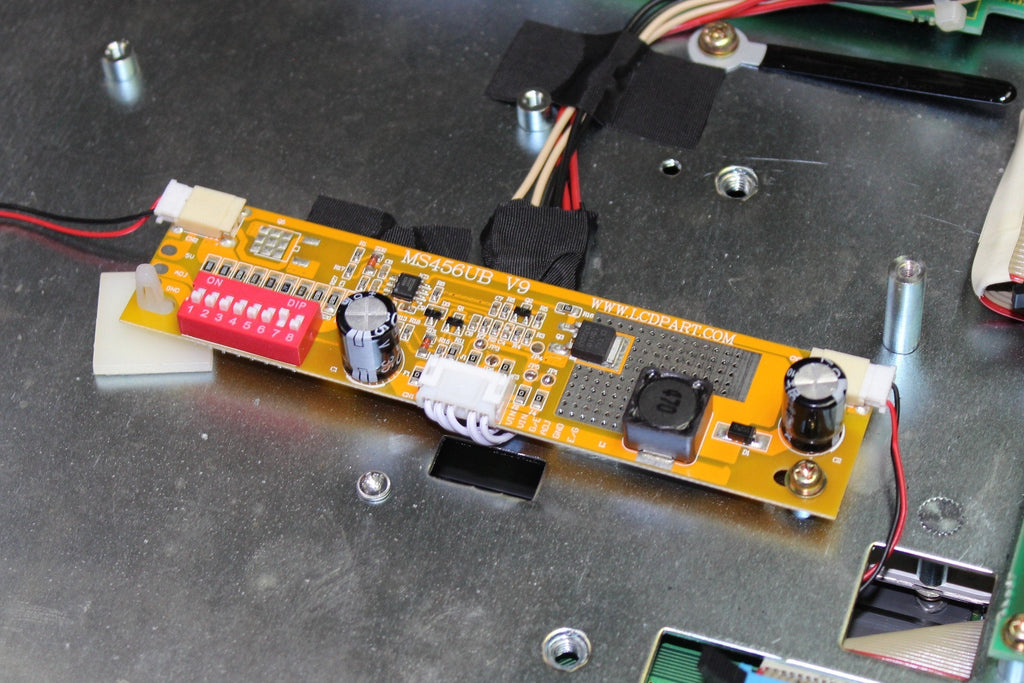

Disconnect CCFL lamp wire harness, remove CCFL inverter and mount MS456UB on the same location
Disconnect Screen wire harness on LQ150X1LW73
Remove old LQ150X1LW73
Mount LQ150X1LW73-LCD back to the same location
Mount MS456UBConnect Screen wire harness to LQ150X1LW73-LCD
Connect existing inverter wire harness to a LED wire adapter
LQ150X1LW73-LCD has the same interface connector, dimension and screw hole as the old LQ150X1LW73.
LQ150X1LW73-LCD included the following items:
1) 15 inch LCD screen ( it has upgraded to our Sunlight Readable LED kit)
1) MS456UB LED driver
1) A wire adapter
LQ150X1LW73-LCD is included a wire adapter that is compatible with TDK CXA-0315(PCU-P119A), CXA-0370(PCU-P154E) and CXA-0385(PCU-P166)
