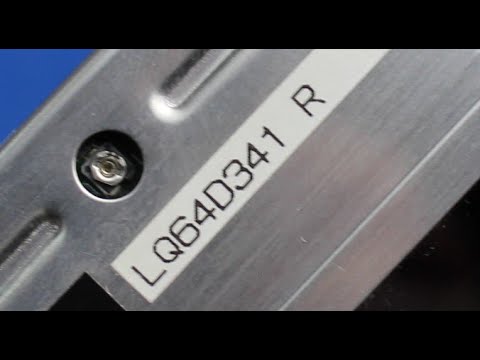

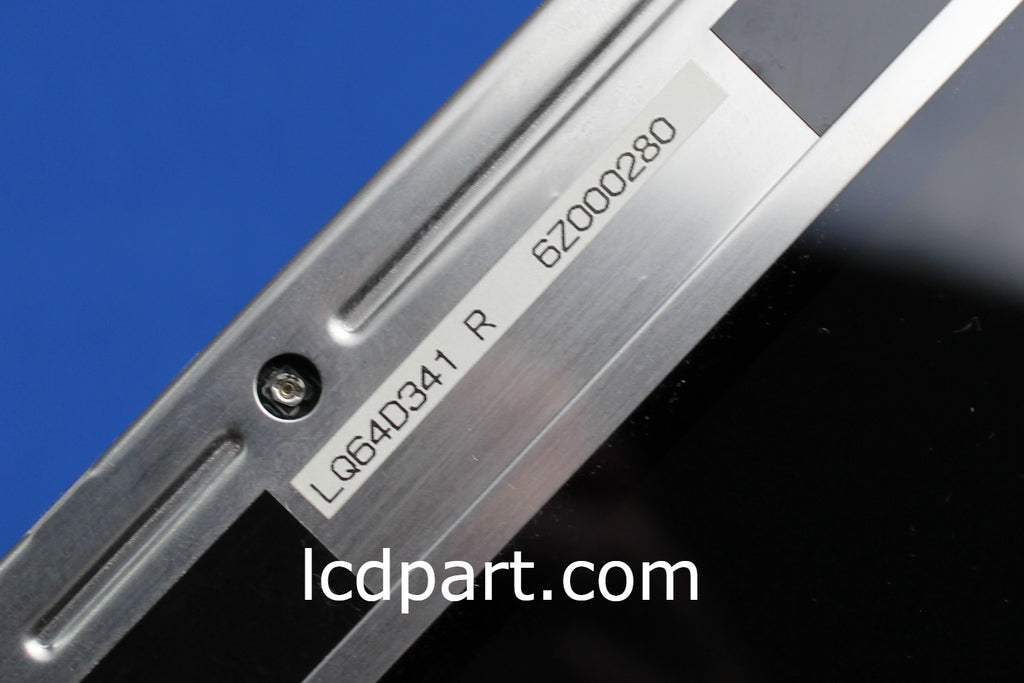

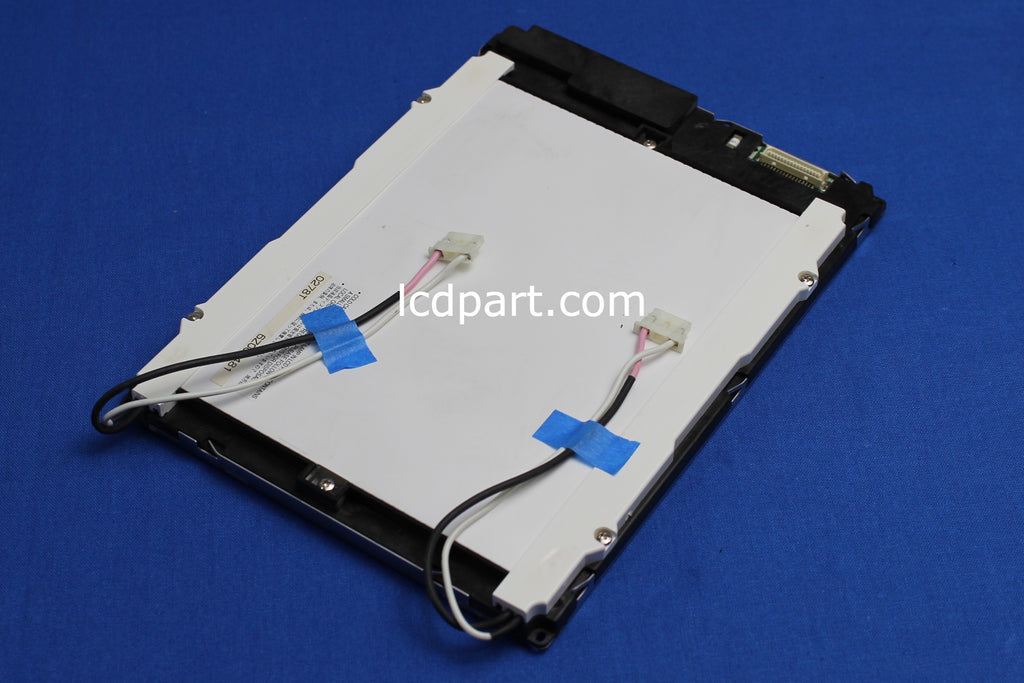

Sharp LQ64D341, one of the most popular LCD panels in an industrial application. This 6.4 inch Sharp LQ64D341 is originally equipped with dual CCFL back light lamps. To extend its life and improve its performance, upgrading it to our 57LHS-LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for sharp LQ64D341 is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 6.4
Native Resolution 640 X 480
Active Area [mm] 130.6(H) X 97.0(V)
Outline dimension [mm] 175.0(W) X 126.5(H) X 12.5(D)
Bolt Hole Dimension [mm] 106.8 X 81
Input Voltage VDD [Volt] 5V
Screen Wire Harness DF9-31-2829
Electrical Interface TTL
White Luminance [cd/m2] 250
Contrast Ratio N/A
BackLight Connector BHR-03VS-1X2
Backlight Inverter Substitute MS179DI
Response time, Rising msec N/A
Response time, Falling msec N/A
Viewing Angle - Horizontal degree 70
Viewing Angle - Vertical degree 40
LCD controller kit TTL-DF9-31_640X480
LED Backlight kit 57LHS-LED
