LQ9D011-LCD is a direct replacement for the Sharp LQ9D011. LQ9D011-LCD has a much better image quality and is much brighter than old LQ9D011. Wider viewing angle and faster response time then old Sharp LQ9D011. It has upgraded our Sunlight Readable LED Kit and LQ9D011-LCD will last 10X longer than CCFL lamps. It is easy to install! Anyone can do it! 1 year warranty!
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from main board
Disconnect Screen wire harness on LQ9D011
Remove old LQ9D011
Mount LQ9D011-LCD back to the same location*
Connect Screen wire harness to LQ9D011-LCD
Connect Ground (GND) to Black wire
LQ9D011-LCD has the same interface connector, dimension and screw hole as the LCD screens that are listed below.
LQ9D011-LCD included the following items:

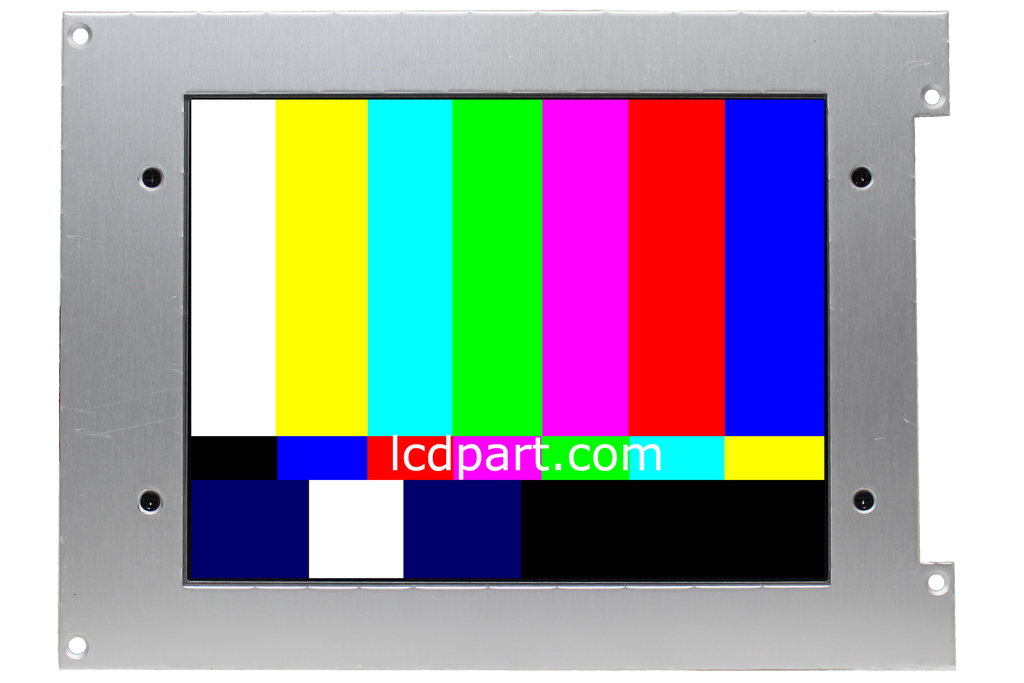

1) 8.4 inch LCD screen ( it has upgraded to Sunlight Readable LED kit)
1) MS610UB LED driver
1) A wire connector with Red and Black wires
1) 4 screws and 4 spacers
In case there is a height issue between Replacement LCD and Metal chassis. Please use the enclosed spacers and screws
Compatible with the following Manufacturers and Models:
