LQ9D011K Direct Replacement LCD , P/N: LQ9D011K-LCD

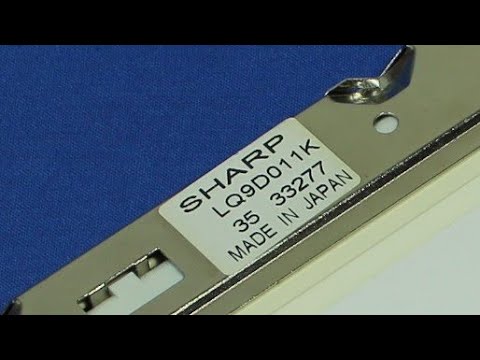

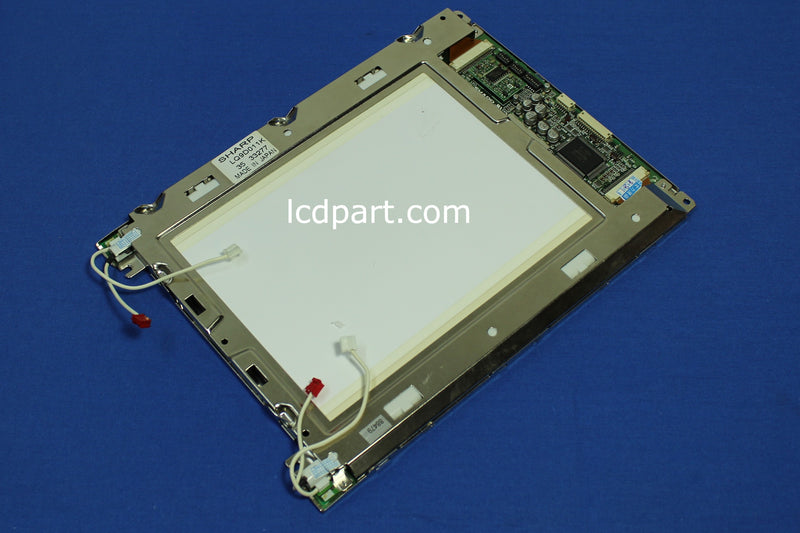

LQ9D011K is a very old LCD screen that is discontinued (obsolete). However, LQ9D011K is still available on the worldwide web. The condition of Sharp LQ9D011K varies widely. Such as are listed as new, good, used and refurbished. Unfortunately, because of its age. Sharp LQ9D011K is NOT RELIABLE at all nowadays. LQ9D011K will cause all kinds of problems in a short time period after replacement.

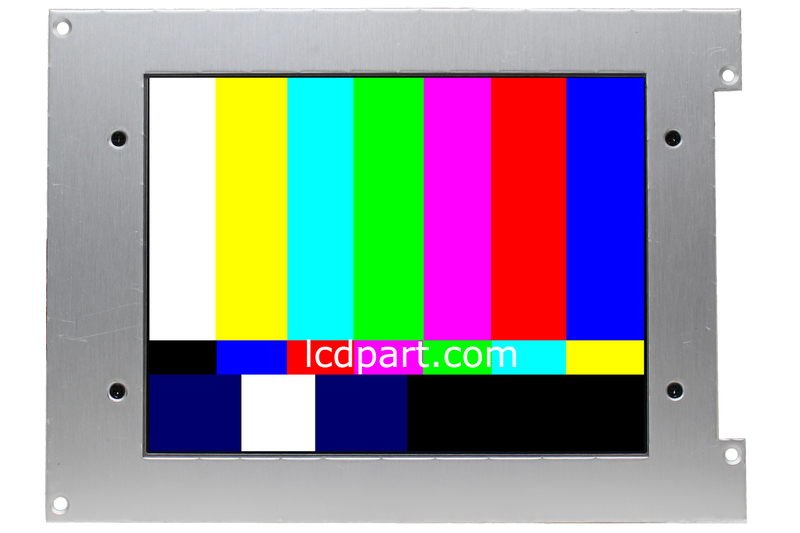

LQ9D011K-LCD is a direct replacement for Sharp LQ9D011K. LQ9D011K-LCD has a much better image quality and is much brighter than old LQ9D011K. Wider viewing angle and faster response time then old Sharp LQ9D011K. It has upgraded our Sunlight Readable LED Kit and LQ9D011K-LCD will last 10X longer than CCFL lamps. It is easy to install! Anyone can do it! 1 year warranty! We ship worldwide.
Installation takes about 15 minutes:
Disconnect CCFL lamp wire harness from main board.
Disconnect Screen wire harness on LQ9D011K
Remove old LQ9D011K
Mount LQ9D011K-LCD back to the same location*
Connect Screen wire harness to LQ9D011K-LCD
Connect +12V or 24V DC to Red wire
Connect Ground (GND) to Black wire
LQ9D011K-LCD has the same interface connector, dimension and screw hole as the LCD screens that are listed below.
LQ9D011K-LCD included the following items:
New 8.4 inch LCD screen ( it has upgraded to Sunlight Readable LED kit)
MS610UB LED driver
1) A wire connector with Red and Black wires
1) 4 screws and 4 spacers
In case there is a height issue between Replacement LCD and Metal chassis. Please use the enclosed spacers and screws
