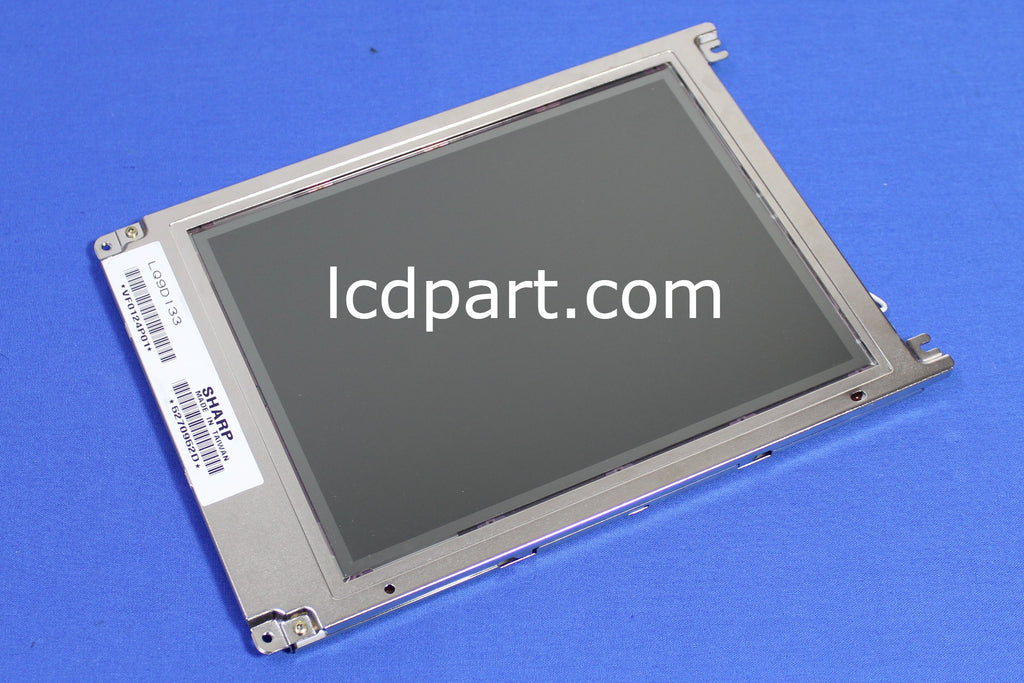

This refurbished Sharp LQ9D133 has been replaced with our new CCFL back light lamps, new polarize film and there are no scratches and no pressure marks on the screens. Guaranteed! Like new condition! 90 days warranty.

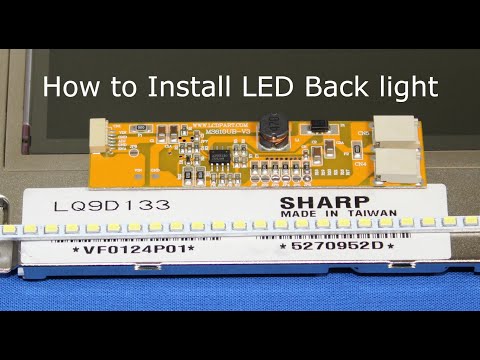

Sharp LQ9D133, one of the most popular LCD panels in an industrial application. This 8.4 inch Sharp LQ9D133 is originally equipped with dual CCFL back light lamps. To extend its life and improve its performance, upgrading it to our UB35145X13R3D LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
|Native Resolution||640 X 480|
|Active Area||[mm]||170.9(H) X 129.6(V)|
|Outline dimension||[mm]||236.0(W) X 165(H) x 10.5(D)|
|Bolt Hole Dimension||[mm]||140 X 153|
|Input Voltage VDD||[Volt]||5V|
|Screen Wire Harness||TTL-DF9-31-2224(Custom)|
|Electrical Interface||TTL (4-bit)|
|Backlight Inverter||Substitute MS397DI|
|Response time, Rising||msec||N/A|
|Response time, Falling||msec||N/A|
|Viewing Angle - Horizontal||degree||N/A|
|Viewing Angle - Vertical||degree||N/A|
|LCD Controller kit|
|LED Backlight kit||UB35145X13R3D|
