Description

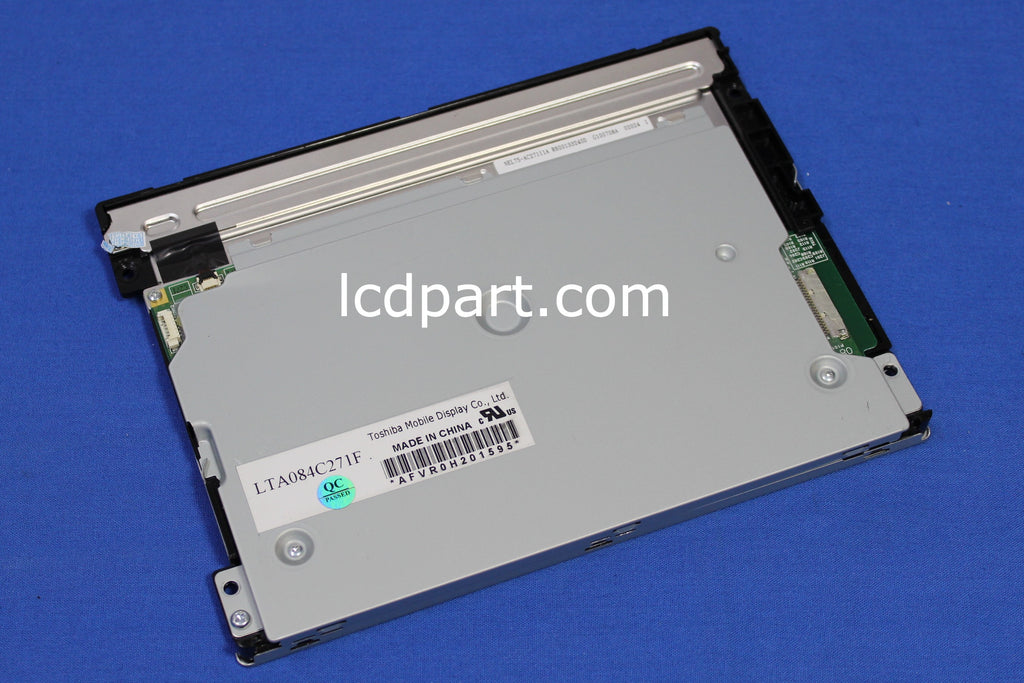

Refurbished (like new condition) Toshiba LTA084C271F LCD Screen. 90 days warranty.

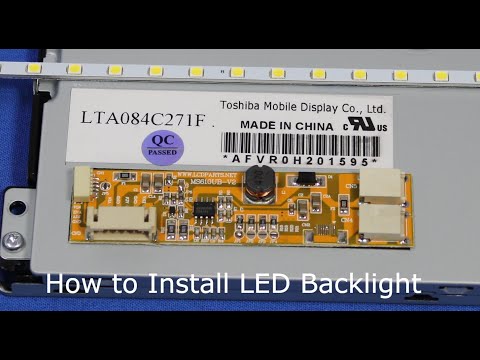

This super bright LED upgrade kit is custom designed for industrial LCD screens that are originally equipped with its manufactured LED strip or CCFL lamps that are mounted on one side. By simply swap out with our SB44165X12R7 LED kit, now you have a sunlight readable LCD screen( (up to 1500 nit or higher).
Six pin pigtail connector is included. It is easy to Install! Anyone can do it! 90 days warranty.
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 8.4 |
Native Resolution | 800 X 600 | |
Active Area | [mm] | 170.4(H) X 127.8(V) |
Outline dimension | [mm] | 199.5(W) X 149.5(H) X 12.0(D) |
Bolt Hole Dimension | [mm] | 104.9 X 104.9 |
Input Voltage VDD | [Volt] | 3.3V |
Screen Wire Harness | DF19-20P-1LVDS-121W | |
Electrical Interface | LVDS(6-bit) | |
White Luminance | [cd/m2] | 400 |
Contrast Ratio | 370:1 | |
BackLight Connector | 53261-0671 / MOLEX | |
Backlight Inverter | Build-In, 12V | |
Response time, Rising | msec | 8 |
Response time, Falling | msec | 17 |
Viewing Angle - Horizontal | degree | 100 |
Viewing Angle - Vertical | degree | 120 |
LCD controller kit | DF19-20P-1LVDS-121W_800X600-6Bit | |
LED Backlight kit | SB44165X12R7 |
