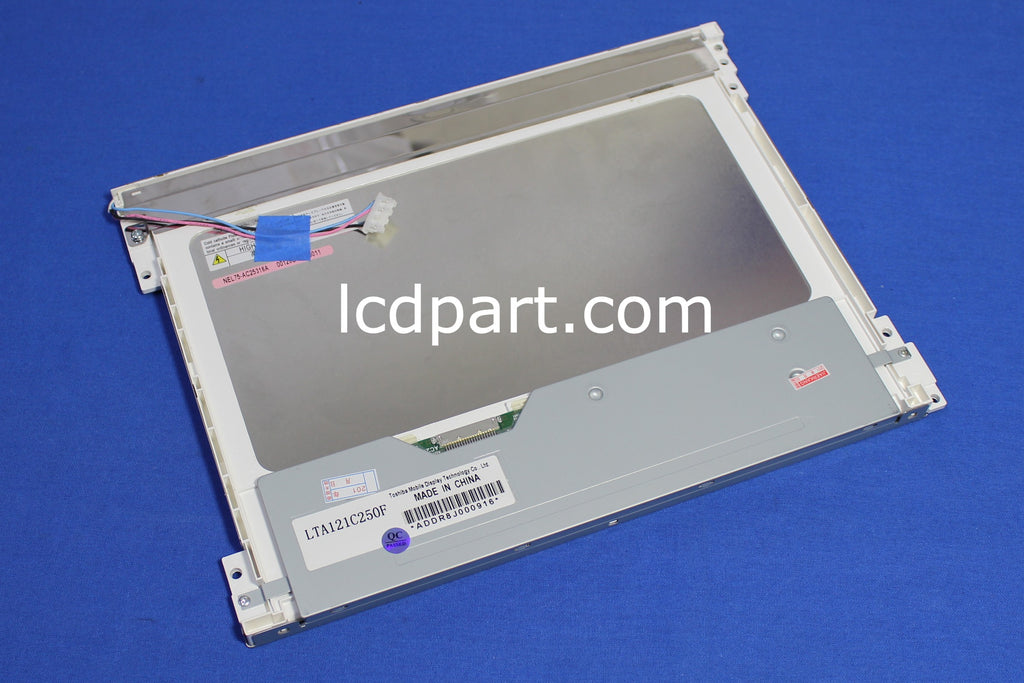

LTA121C250F 12.1 inch Toshiba LCD screen


Price:
$229.99

Description

Toshiba LTA121C250F, one of the most popular LCD panels in an industrial application. This 12.1 inch Toshiba LTA121C250F is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB54255LED6420X1+MS610UB LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for Toshiba LTA121C250F is Listed below
General Specifications:
Item Unit Specifications (C4)
Screen Size [inch] 12.1
Native Resolution 1024 X 768
Active Area [mm] 245.76(H) X 184.32(V)
Outline dimension [mm] 278.3(W) X 209.0(H) X 12.0(D)
Bolt Hole Dimension [mm] 138 X 138
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF19-20P-1LVDS-121W
Electrical Interface LVDS(6-bit)
White Luminance [cd/m2] 400
Contrast Ratio 500:1
BackLight Connector BHR-04VS-1X1
Backlight Inverter Substitute MS495DI
Response time, Rising msec 10
Response time, Falling msec 30
Viewing Angle - Horizontal degree 100
Viewing Angle - Vertical degree 120
Compatible with LTA121C253F
LCD controller kit DF19-20P-1LVDS-121W_1024X768-6Bit
LED Backlight kit UB54255LED6420X1+MS610UB
