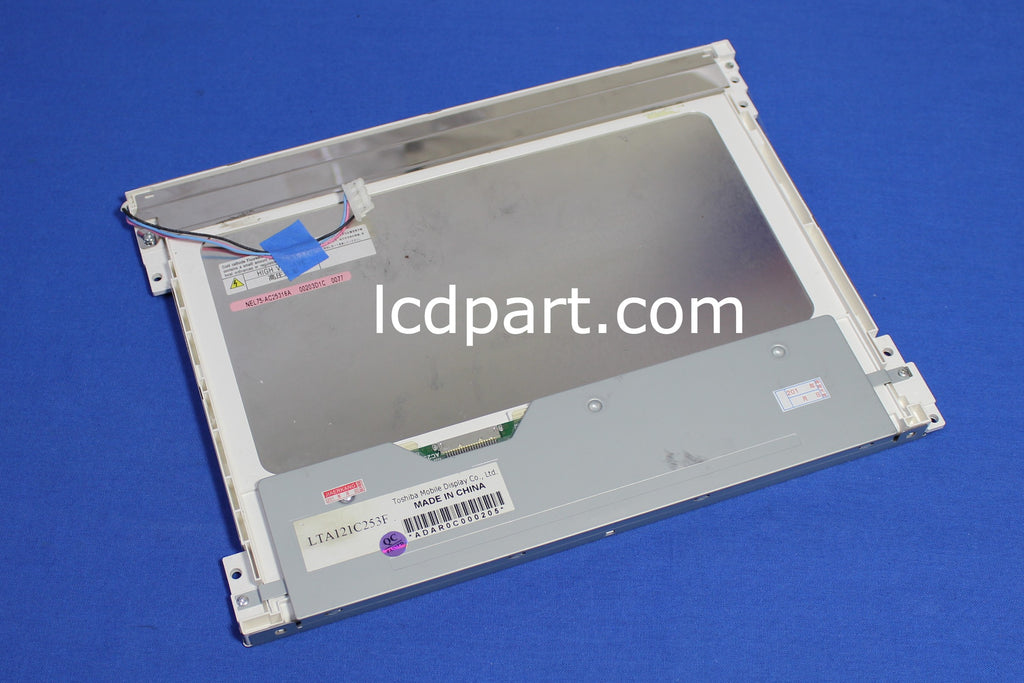

Toshiba LTA121C253F, one of the most popular LCD panels in an industrial application. This 12.1 inch Toshiba LTA121C253F is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB54255LED6420X1+MS610UB LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for Toshiba LTA121C253F is Listed below
|Native Resolution||1024 X 768|
|Active Area||[mm]||245.76(H) X 184.32(V)|
|Outline dimension||[mm]||278.3(W) X 209.0(H) X 12.0(D)|
|Bolt Hole Dimension||[mm]||138 X 138|
|Input Voltage VDD||[Volt]||3.3V|
|Screen Wire Harness||DF19-20P-1LVDS-121W|
|Backlight Inverter||Substitute MS495DI|
|Response time, Rising||msec||10|
|Response time, Falling||msec||30|
|Viewing Angle - Horizontal||degree||100|
|Viewing Angle - Vertical||degree||120|
|LCD controller kit||DF19-20P-1LVDS-121W_1024X768-6Bit|
|LED Backlight kit||UB54255LED6420X1+MS610UB|
