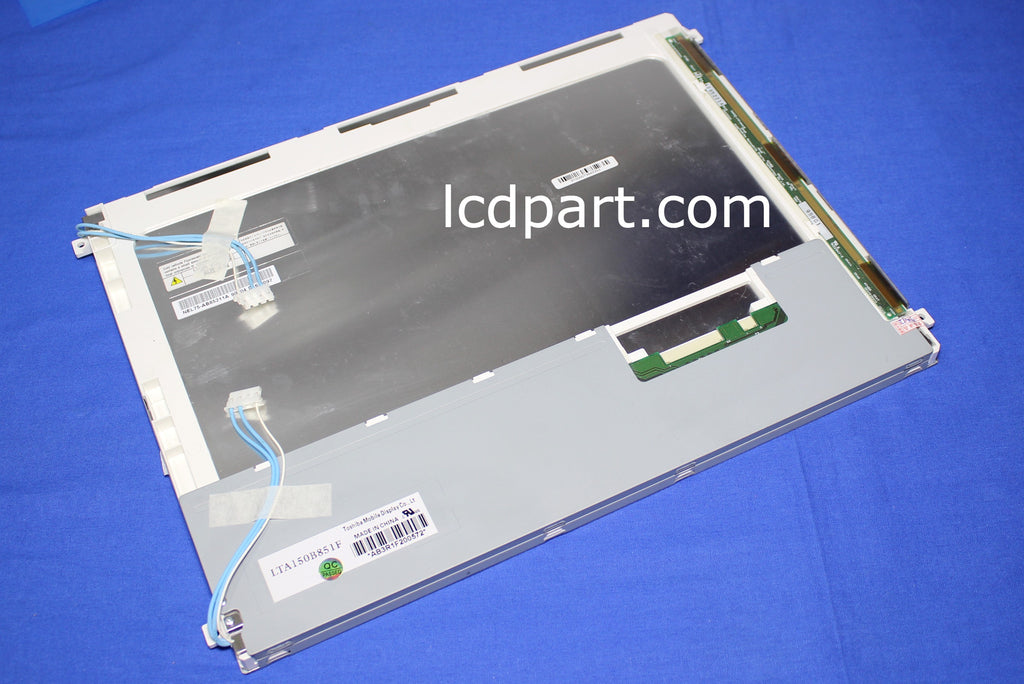

LTA150B851F, 15 inch Toshiba LCD screen



Refurbished (like new condition) Toshiba LTA150B851F. 90 days warranty.

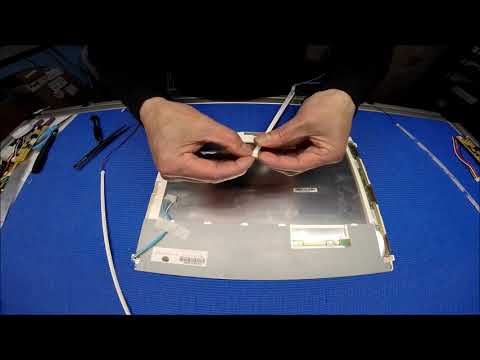

Toshiba LTA150B851F, one of the most popular LCD panels in an industrial application. This 15 inch Toshiba LTA150B851F is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB Series LED kit is the best option(LED Upgrade kit for Toshiba LTA150B851F is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.128(H) X 228.096(V)
Outline dimension [mm] 348.0(W) X 254.7(H) X 14.0(D)
Bolt Hole Dimension [mm] 212 X 219
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS(6-bit), P19: 6 Bit=O/NC, 8 Bit=L/GND
White Luminance [cd/m2] 450
Contrast Ratio 450:1
BackLight Connector BHR-04VS-1X2
Backlight Inverter Substitute MS31DI
Response time, Rising msec tr+tf=16
Response time, Falling msec N/A
Viewing Angle - Horizontal degree 160
Viewing Angle - Vertical degree 120
LCD controller kit DF14-20P-1LVDS_1024X768-6Bit
LED Backlight kit UB54318LED8020X2
