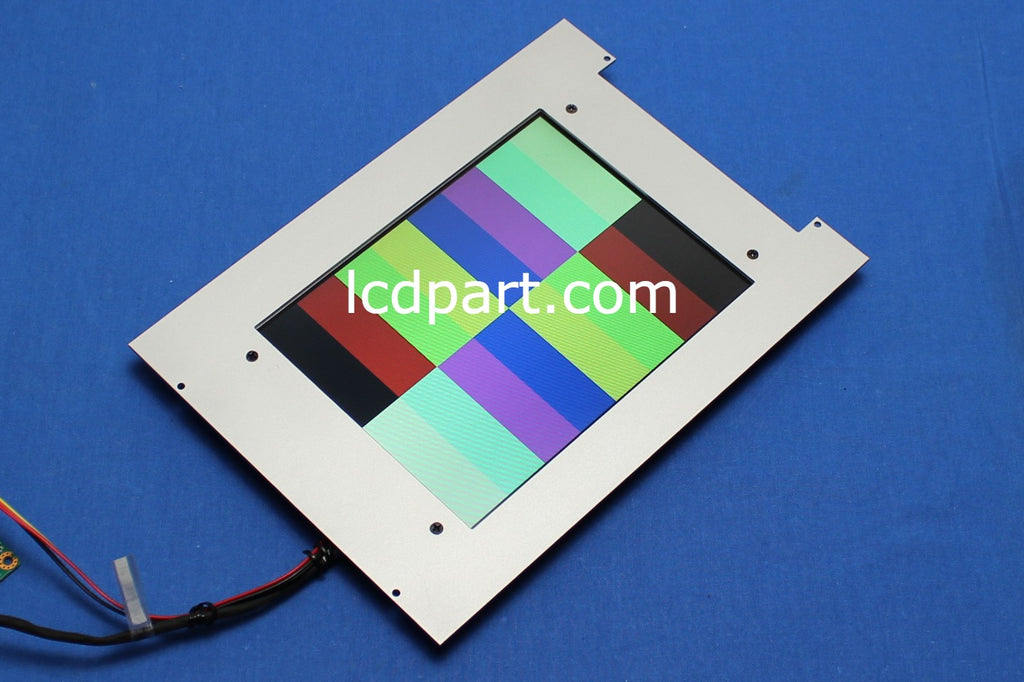

LTM10C042-LCD is a direct replacement for LTM10C042. LTM10C042-LCD has a much better image quality and is much brighter than old LTM10C042. Wider viewing angle and faster response time then old LTM10C042. LTM10C042-LCD has upgraded our Sunlight Readable LED Kit and 6FC5203-0AB20-1AA0-LCD will last 10X longer than CCFL lamps.
Six pin wire connector is included. No technical skills required! It is easy to Install! Anyone can do it! Soldering is required! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from main board
Disconnect Screen wire harness on LTM10C042
Remove old LTM10C042
Mount LTM10C042-LCD back to the same location
Connect Screen wire harness to LTM10C042-LCD
Connect Red wire to +12-24V DC and connect Black wire to negative or GND (Or can be connected directly to power supply Input terminal).
LTM10C042-LCD has the same interface connector, dimension and screw hole as the old LTM10C042.
LTM10C042-LCD included the following items:
1) A LCD screen ( it has upgraded to Sunlight Readable LED kit)
1) MS610UB LED driver
