Description
This refurbished Toshiba LTM10C209A LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and there are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty

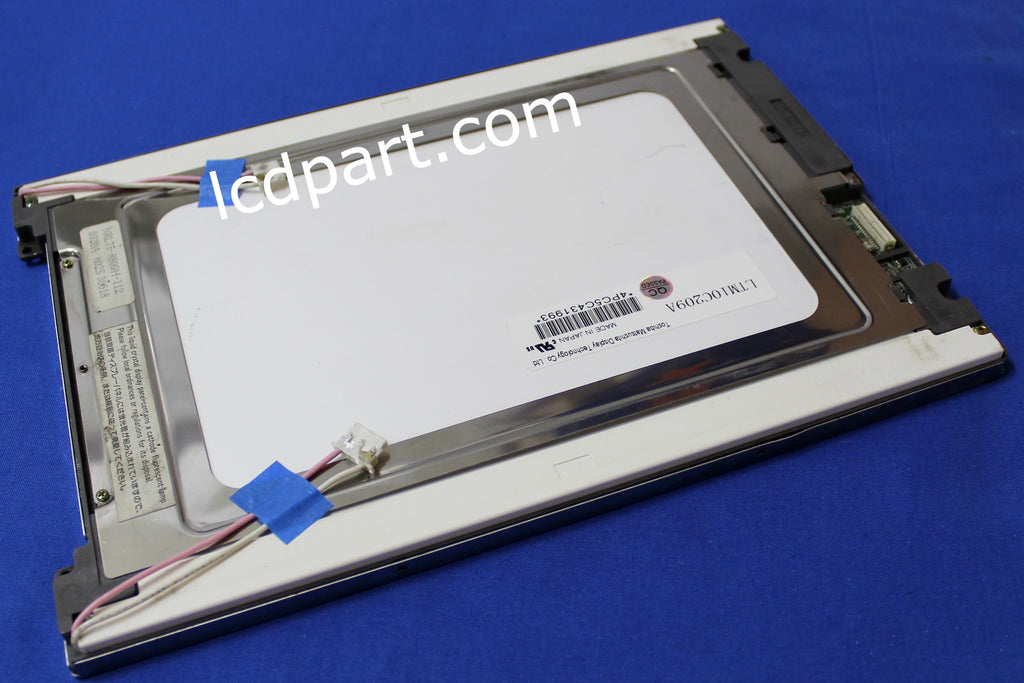

Toshiba LTM10C209A, one of the most popular LCD panels in an industrial application. This 10.4 inch Toshiba LTM10C209A is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our LTM10C209A-LEDKIT is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 10.4 |
Native Resolution | 640 X 480 | |
Active Area | [mm] | 221.2(H) X 158.4(V) |
Outline dimension | [mm] | 265.0(W) X 188.8(H) X 12.0(D) |
Bolt Hole Dimension | [mm] | 130 X 130 |
Input Voltage VDD | [Volt] | 5V |
Screen Wire Harness | TTL-DF9-31-3031 | |
Electrical Interface | TTL | |
White Luminance | [cd/m2] | 250 |
Contrast Ratio | 250:1 | |
BackLight Connector | BHR-03VS-1X2 | |
Backlight Inverter | Substitute MS179DI | |
Response time, Rising | msec | N/A |
Response time, Falling | msec | N/A |
Viewing Angle - Horizontal | degree | N/A |
Viewing Angle - Vertical | degree | N/A |
LCD controller kit | TTL-DF9-31-3031_640X480 | |
LED Backlight kit | LTM10C209A-LEDKIT |
