LTM15C458M-LCD is a direct replacement for LTM15C458M. LTM15C458M-LCD has a much better image quality and is much brighter than old LTM15C458M. Wider viewing angle and faster response time then old LTM15C458M. LTM15C458M-LCD has upgraded our Sunlight Readable LED Kit and LTM15C458M-LCD will last 10X longer than CCFL lamps.
A wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness, remove CCFL inverter and mount MS456UB on the same location
Disconnect Screen wire harness on LTM15C458M
Remove old LTM15C458M
Mount LTM15C458M-LCD back to the same location
Mount MS456UBConnect Screen wire harness to LTM15C458M-LCD
Connect existing inverter wire harness to a LED wire adapter
LTM15C458M-LCD has the same interface connector, dimension and screw hole as the old LTM15C458M.
LTM15C458M-LCD included the following items:

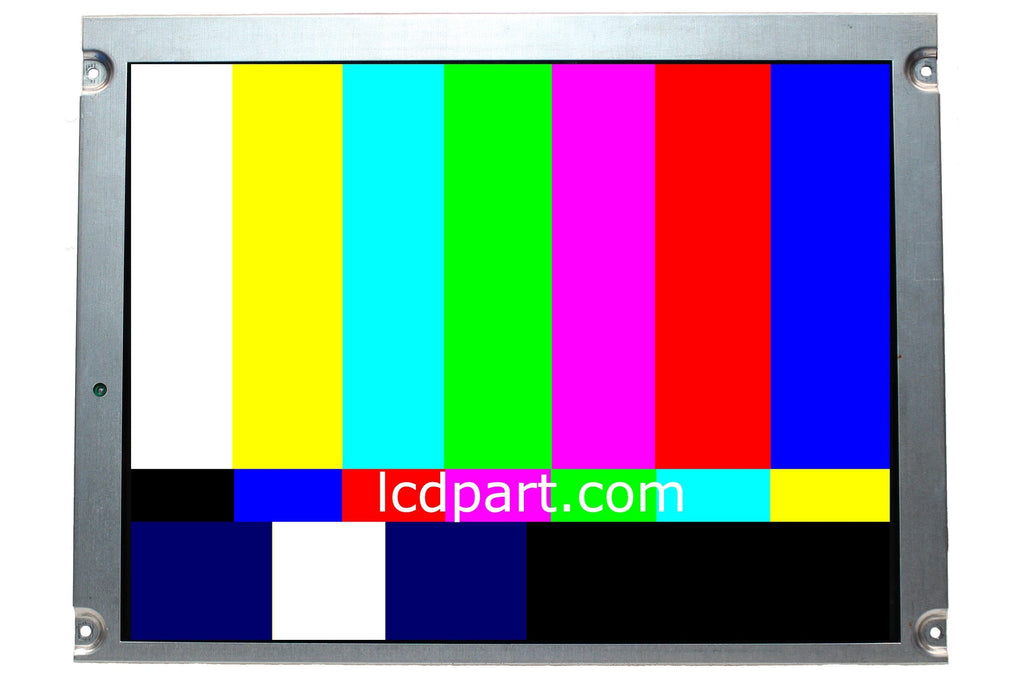

1) 15 inch LCD screen ( it has upgraded to our Sunlight Readable LED kit)

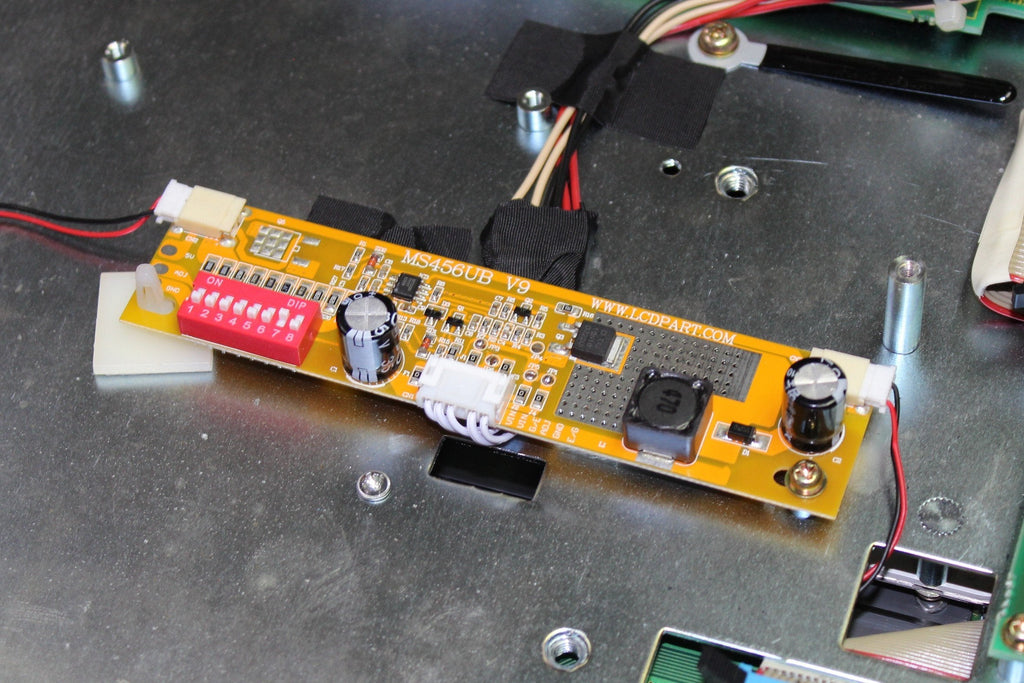

1) MS456UB LED driver
1) A wire adapter
LTM15C458M-LCD is included a wire adapter that is compatible with TDK CXA-0315(PCU-P119A), CXA-0370(PCU-P154E) and CXA-0385(PCU-P166)
