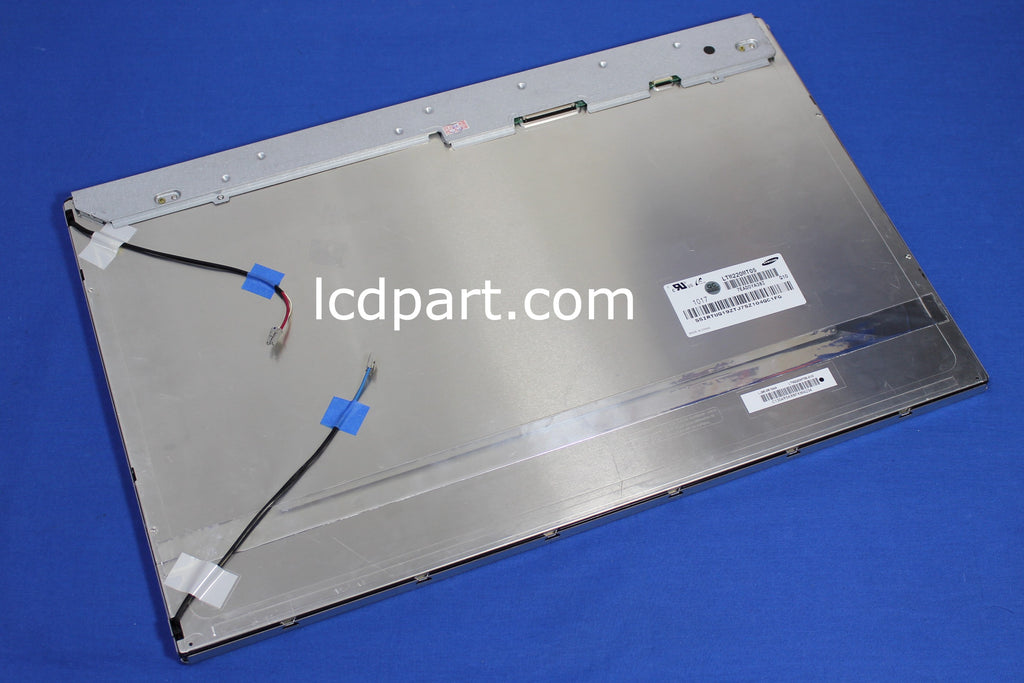

LTM220MT05 22 inch Samsung LCD screen

CCFL/LED KIT: New CCFL Installed


Refurbished Samsung LTM220MT05 LCD screen. 90 days warranty.
Samsung LTM220MT05, one of the most popular LCD panels in an industrial application. This 22 inch Samsung LTM220MT05 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB60485LED5620X2 LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for Samsung LTM220MT05 is Listed below
General Specifications:
Item Unit Specifications (Box 29)
Screen Size [inch] 22
Native Resolution 1680 X 1050
Active Area [mm] 473.76(H) X 296.10(V)
Outline dimension [mm] 493.7(W) X 320.1(H) X 16.5(D)
Bolt Hole Dimension [mm] 152 ( 264) X 240 (264)
Input Voltage VDD [Volt] 5V
Screen Wire Harness FIX-30S-2LVDS
Electrical Interface Dual channel LVDS
White Luminance [cd/m2] 250
Contrast Ratio 1000:1
BackLight Connector BHR-02VS-1X2
Backlight Inverter N/A
Response time, Rising msec tr+tf=8
Response time, Falling msec N/A
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit FIX-30S-2LVDS_1680X1050
LED Backlight kit UB60485LED5620X2
