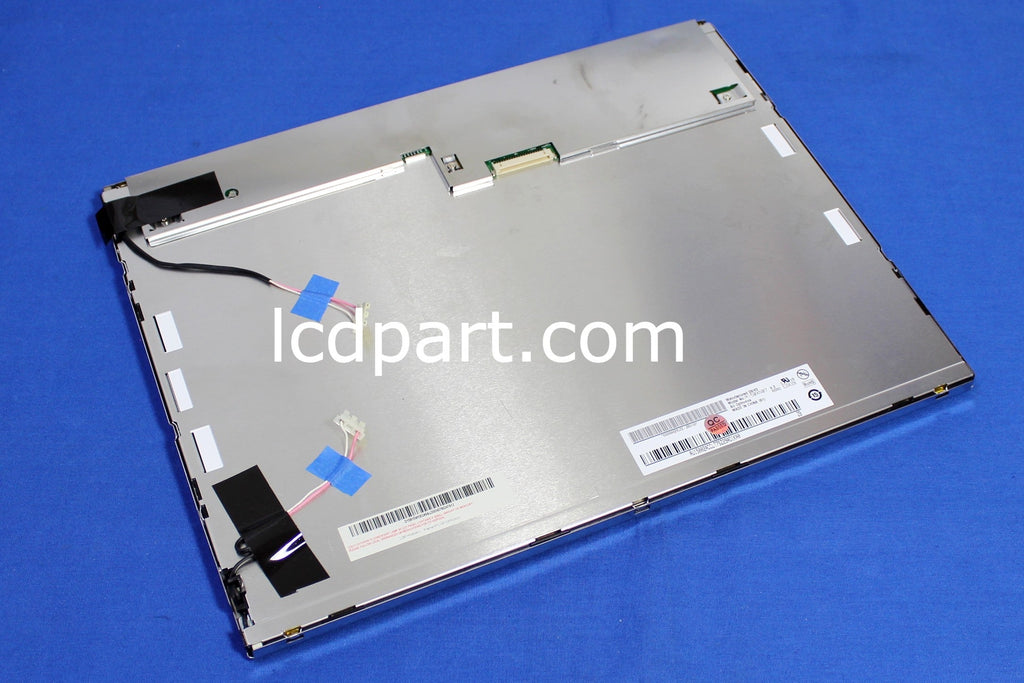

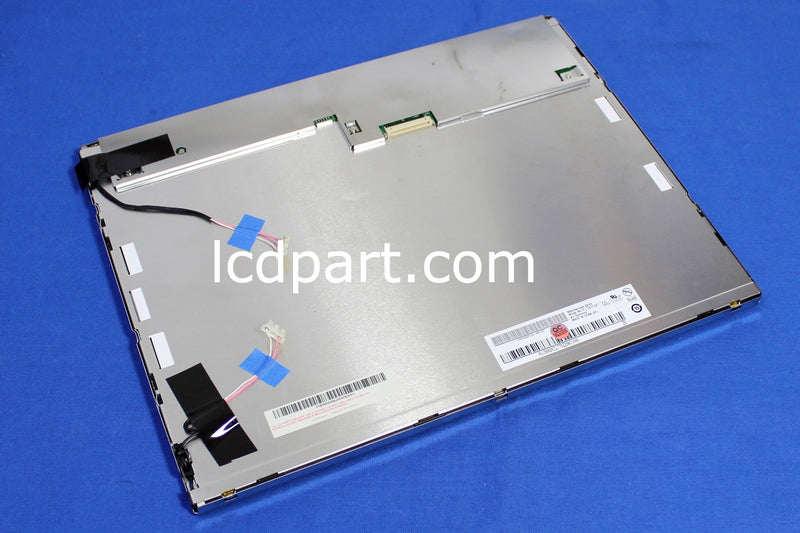

M150XN07-V9, 15 inch AUO LCD screen


Price:
$269.99

Description

This refurbished AUO M150XN07-V9 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and there are no scratches and no pressure marks on the screens. Guaranteed! Like new condition ! 90 days warranty.
AUO M150XN07-V9, one of the most popular LCD panels in an industrial application. This 15 inch AUO M150XN07-V9 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB36318LED6420X2 LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for AUO M150XN07-V9 is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.128(H) X 228.096(V)
Outline dimension [mm] 326.5(W) X 253.5(H) X 12.0(D)
Bolt Hole Dimension [mm] 176 X 224
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (6-bit)
White Luminance [cd/m2] 250
Contrast Ratio 700:1
BackLight Connector BHR-03VS-1X2
Backlight Inverter Substitute MS641DI
Response time, Rising msec 4
Response time, Falling msec 6
Viewing Angle - Horizontal degree 70
Viewing Angle - Vertical degree 65
Compatible with MS150RBHR03X2DF1420D16B
LCD controller kit DF14-20P-1LVDS_1024X768-6B
LED Back light kit UB36318LED6420X2
Direct Replacement LCD MS150RSBDF1420D1
