Description
Refurbished AUO M170EG01-V9. 90 days warranty.

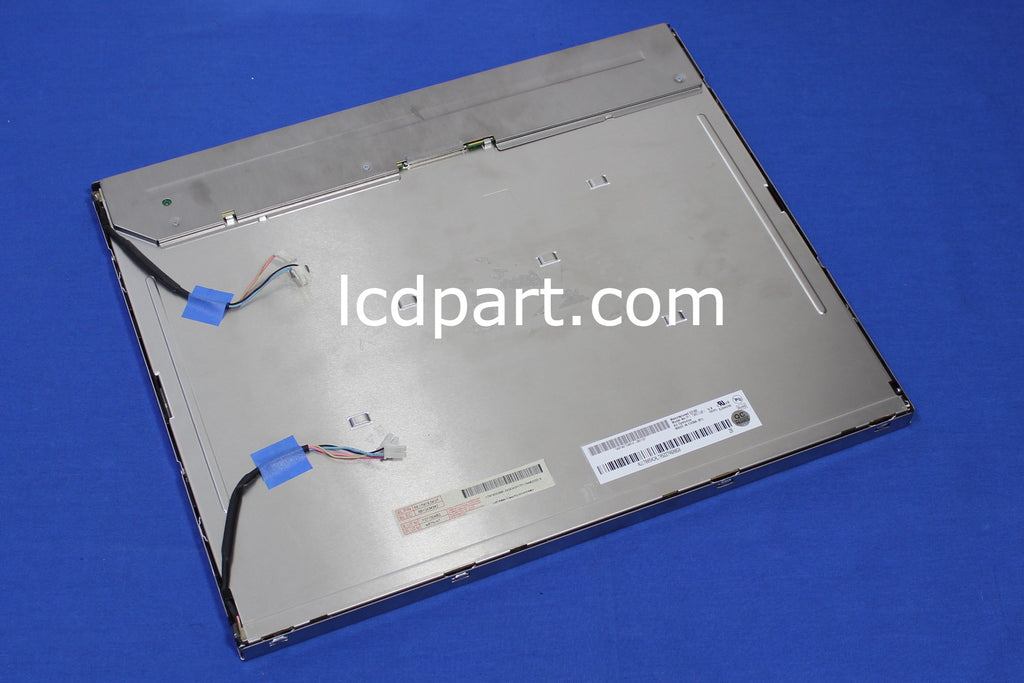

AUO M170EG01-V9, one of the most popular LCD panels in an industrial application. This 17 inch AUO M170EG01-V9 is originally equipped with dual CCFL back light lamps. To extend its life and improve its performance, upgrading it to our UB70345LED4221X2 LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for AUO M170EG01-V9 is Listed below
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 17 |
Native Resolution | 1280 X 1024 | |
Active Area | [mm] | 337.920(H) X 270.336(V) |
Outline dimension | [mm] | 358.5(W) X 296.5(H) X 17.0(D) |
Bolt Hole Dimension | [mm] | 240 X 261 |
Input Voltage VDD | [Volt] | 5V |
Screen Wire Harness | FIX-30S-2LVDS | |
Electrical Interface | LVDS (8-bit) | |
White Luminance | [cd/m2] | 420 |
Contrast Ratio | 500:1 | |
BackLight Connector | BHSR-02VS-1X4 | |
Backlight Inverter | Substitute MS30DI | |
Response time, Rising | msec | 6 |
Response time, Falling | msec | 2 |
Viewing Angle - Horizontal | degree | 70 |
Viewing Angle - Vertical | degree | 80 |
Compatible with | MS170RBHSR02X4FIX30D1 | |
LCD controller kit | FIX-30S-2LVDS_1280X1024 | |
LED Backlight kit | UB70345LED4221X2 | |
Direct Replacement LCD | MS170RUBFIX30D1 |
