M170ETN01.1


Price:
$119.99

Description

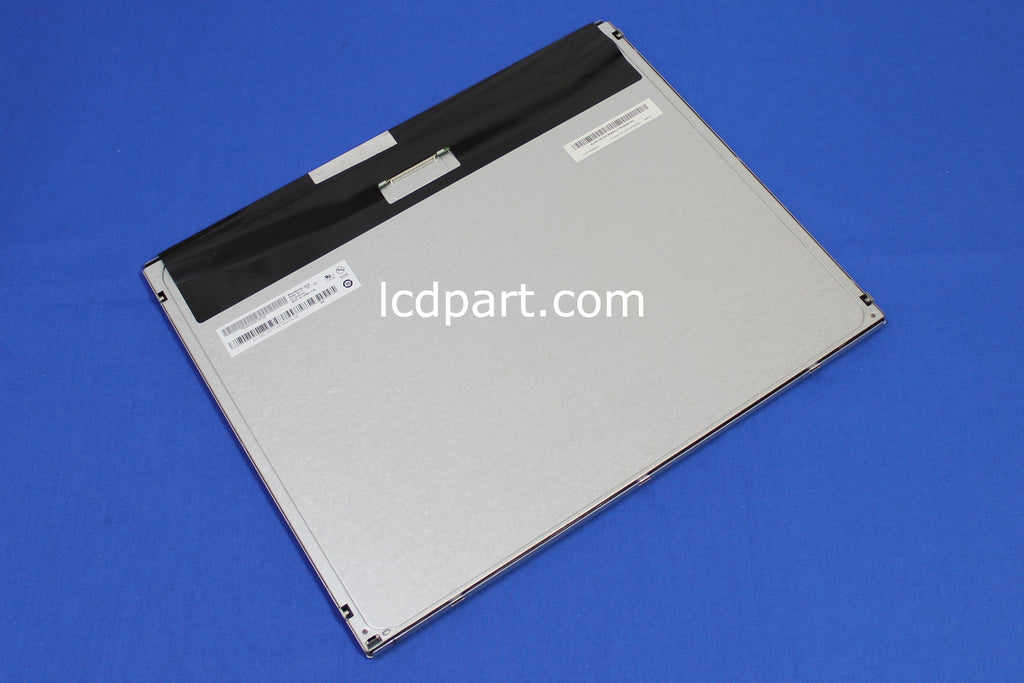

This refurbished AUO M170ETN01.1 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions! 90 days warranty
AUO M170ETN01.1, one of the most popular LCD screen in an industrial control application. This 17 inch AUO M170ETN01.1 is originally equipped with LED back light.
General Specifications:
Item Unit Specifications (BOX1)
Screen Size [inch] 17
Native Resolution 1280 X 1024
Active Area [mm] 337.920(H) X 270.336(V)
Outline dimension [mm] 358.5(W) X 296.5(H) X 10.3(D)
Bolt Hole Dimension [mm] 240 X 261
Input Voltage VDD [Volt] 5V
Screen Wire Harness FIX-30S-2LVDS
Electrical Interface Dual channel LVDS
White Luminance [cd/m2] 250
Contrast Ratio 1000:1
BackLight Connector H112K-P06N-13B 1.0MM, 6 PIN(MS570EXT)
Backlight Inverter 28.8V/60ma/4 strings, P1/P2/P5/P6=LED-, P3/P4=LED+
Response time, Rising msec 3.8
Response time, Falling msec 1.2
Viewing Angle - Horizontal degree 88
Viewing Angle - Vertical degree 85
LCD controller kit FIX-30S-2LVDS_1280x1024
