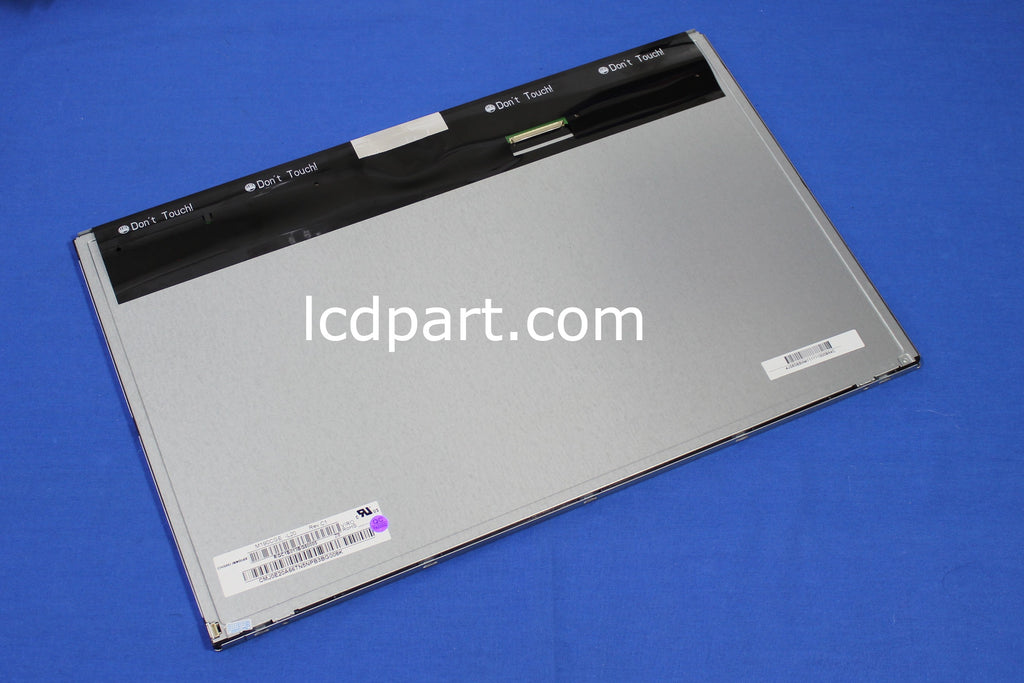

M190CGE-L20, 19 inch Chi Mei LCD Screen


Price:
$119.99

Description

Refurbished (like new condition) Innolux M190CGE-L20 LCD screen. 90 days warranty.
Innolux M190CGE-L20 , one of the most popular LCD screen in an industrial control application. This 19 inch Innolux M190CGE-L20 is originally equipped with LED backlight.
General Specifications:
Item Unit Specifications (Box 32)
Screen Size [inch] 19
Native Resolution 1440 X 900
Active Area [mm] 408.24(H) X 255.15(V)
Outline dimension [mm] 428.0(W) X 278.0(H) X 10.5(D)
Bolt Hole Dimension [mm] 410 X 350, top and bottom
Input Voltage VDD [Volt] 5V
Screen Wire Harness FIX-30S-2LVDS
Electrical Interface Dual channel LVDS
White Luminance [cd/m2] 250
Contrast Ratio 1000:1
BackLight Connector CI1406M1HRF-NH, 6 PIN(MS570EXT)
Backlight Inverter 3.1V/66ma/4 strings, P1/P2/P5/P6=LED-, P3/P4=LED+
Response time, Rising msec 3.5
Response time, Falling msec 1.5
Viewing Angle - Horizontal degree 170
Viewing Angle - Vertical degree 178
LCD controller kit FIX-30S-2LVDS_1440X900
